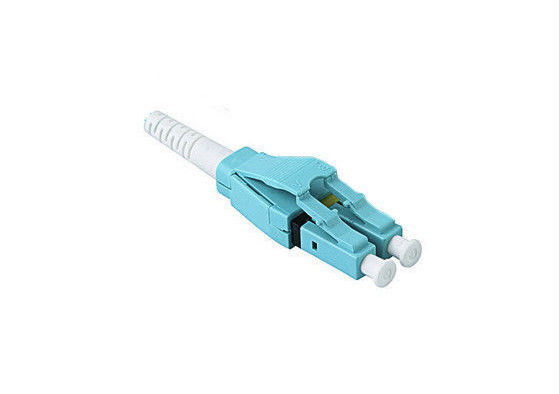

LC PC Multi Mode Fiber Optic Connectors Duplex 0.3dB IL For Data Processing Networks

: Large Image : LC PC Multi Mode Fiber Optic Connectors Duplex 0.3dB IL For Data Processing Networks

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2008
Model Number:	LC/PC MM DX

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Negotiation
Packaging Details:	PE Bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Connector	Application:	FTTH FTTB FTTX Network
Insertion Loss:	PC≤0.2 DB,UPC≤0.2 DB,APC≤0.2 DB,	Operating Temperature:	-40~80℃
Return Loss:	PC≥50dB,UPC≥55dB,APC≥60dB	Durability:	≤ 0.2db Typical Change
Highlight:	plastic fiber optic cable connectors , terminate fiber lc connector

LC PC Multimode Duplex Fibre Optic Connector, 0.3dB Insertion Loss

Features

Have two dismount gap, easy to dismount
Streamline design, good aesthetic
Uniboot connector cable management
Switchable Connector to change polarity
MINI Boot & Flex angle boot available
Right Angle Clip well for panel management

Applications

Local area networks (LAN);
Wide area networks (WAN);
Premise installations;
Data processing networks;
Video and military active device termination.
Optical Distribution Frame
Optical Network Equipments

Specifications

Item	Single mode	Multi mode
Insertion loss	PC≤0.20dB, UPC ≤0.25dB, APC ≤0.25dB	<0.3dB
Return loss	PC ≥50 dB, UPC ≥55 dB & APC ≥60 dB	>25dB
Insert-pull test	1000(times) <0.2dB
Operating temperature	-40°C~ +80°C
Ceramic ferrule spec	125.5um concentricity deviations: <1um	127um concentricity deviations: <3um
Suitable fiber	PC/APC(9/125um)	PC(50/125um, 62.5/125um)
