| Product Name: | Fiber Optic Connector | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Wavelength: | 1310~1550nm | Insertion Loss: | ≤0.2 DB |
| Return Loss: | PC≥50dB,UPC≥55dB,APC≥65dB | Durability: | ≤ 0.2db Typical Change |
| Highlight: | plastic fiber optic cable connectors,quick connect fiber optic connectors |
||

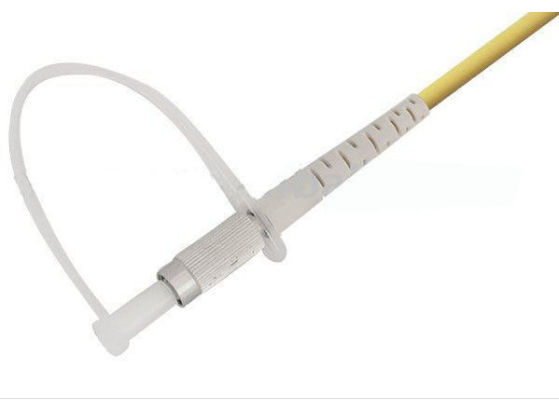

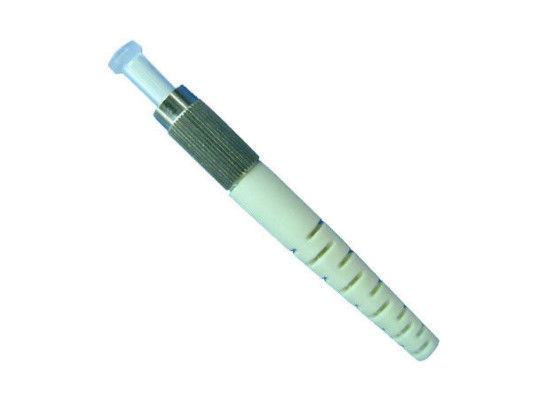

Communication DIN UPC - DIN UPC high quality 2.0 / 3.0mm DIN fiber optical connector
Features
| Content | Testing Condition | (dB) | ||||
| SM | MM | |||||
| APC | UPC | PC | ||||
| Optical Performance | IL(dB) | 1310/1550nm LD Light | 0.2 | 0.2 | 0.2 | 0.2 |
| RL(dB) | 1310/1550nm LD Light | 65 | 55 | 50 | 35 | |
|
Environment Performance |
High Temperature | +85℃,168H | 0.2 | |||
| Temperature cycle | -40~+75℃,21cycle,168H | 0.2 | ||||
| Humidity thermal(Fixed) | 5℃,95%R.H.,168H | 0.2 | ||||
| Humidity thermal cycle | 10~+65℃,95%R.H.,21 cycle,168H | 0.2 | ||||
| Mechanical Performance | Vibration | 10~55Hz,1.5mm(p-p) | 0.1 | |||
| Bending | 0.9kgf,-90°~+90°,100cycle | 0.1 | ||||
| Torsion | 2.5kgf,10times/min,±180°,200times | 0.1n | ||||
| Anti-tension | 90N,10min | 0.1 | ||||
| Dropping | 1.5 height, 8 times | 0.2 | ||||
| Repeat | 10 Times inserts | 0.1 | ||||
| Durability | >1000times | 0.2 | ||||
Mechanical Performance and Working temperature
| Content | Character | Unit |
| Working Temperature | -40~+85 | ℃ |
| Storage Temperature | -5~+50 | ℃ |
|
Φ3.0 Fibre Curl Radius
|
>30 | mm |
| Φ3.0 Anti-Tensile Strength | >9.0 | Kgf |
| Main Mechanical Size | SEE LAYOUT | - |
3D Index
|
Type Content |
APC | UPC | LC | ||
| Radius of Cury(mm) | 5-12 | 10-25 | 7-25 | ||
| Apexoffset(um) | 0~+50 | ||||
| FiberHeight(nm) | -50~+50 | ||||
| Angle(deg) | 7.5~8.5 | / |
/
|
||
