Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Attenuator | Material: | Metal |
|---|---|---|---|
| Attenuation Level Range: | 0~30dB | Operating Temperature Range: | -40 To 75℃ |
| Storage Temperature Range: | -40 To 85℃ | Polarization Dep Loss: | ≤0.1dB |
| Highlight: | fixed optical attenuator,single mode fiber attenuator |
||

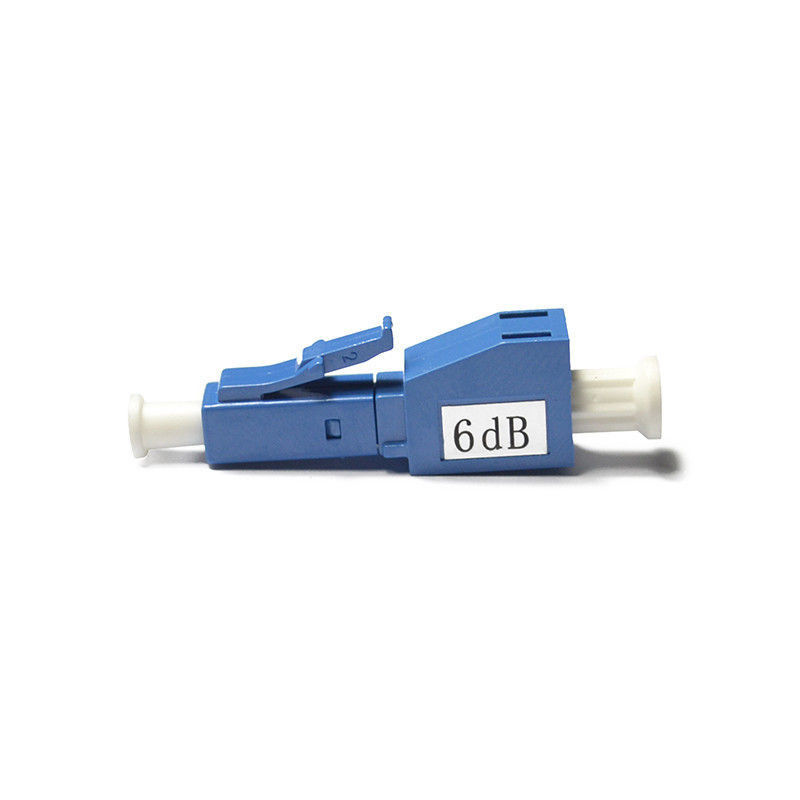

1310nm / 1550nm Fiber Optic Attenuators LC Singlemode Blue With FTTX
Detail:
We offers an extensive line of dual wavelength (1310/1550nm) Singlemode fiber optic attenuators. These versatile in-line attenuators are the perfect solution for attenuating Singlemode fiber connectors for both lab and commercial applications. Constructed of the highest quality materials and factory tested, this series offers the widest array of connector styles and polish types.
Features:
Used to attenuate Single mode fiber connectors/connections
Inline design accommodates fast and easy installation
Ceramic ferrules provide precise alignment
Dual Wavelength (1310/1550nm) support offers multi-application flexibility
Attenuating material-Ion Doped Fiber
Application
1 Fiber optic communication systems.
2 Fiber optic CATV
3 Fiber optic test
Specifications:
| Attenuation Value 1dB ~ 30dB | |
| Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm) | |
| Premium | |
| Return Loss | UPC >55dB |
| APC >65dB | |
|
Attenuation Accuracy |
1 ~ 7 dB ±0.5dB |
| 8 ~ 12 dB ±0.7dB | |
| 13 ~ 17 dB ±1.0dB | |
| 18 ~ 25 dB ±1.3dB | |
| Maximum Optical Input Power 1000mW | |
| Polarization Dependent Loss ≤0.1dB | |
| Operating Temperature Range -40 to 75 | |
| Storage Temperature Range -40 to 85 | |
| Humidity 95%RH | |
