SC / APC Female To Male Fiber Optic Attenuator Single Mode Attenuation Value 1- 30 DB

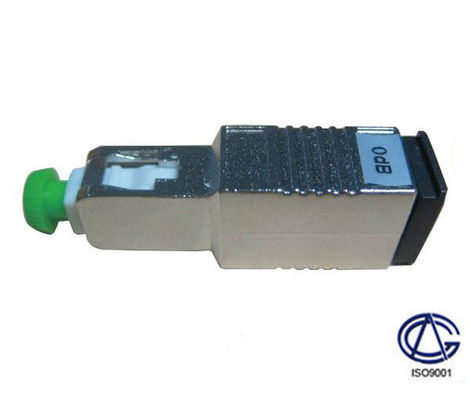

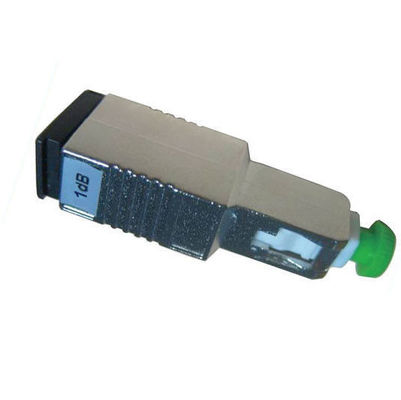

Large Image : SC / APC Female To Male Fiber Optic Attenuator Single Mode Attenuation Value 1- 30 DB

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2008
Model Number:	SC/APC F-M

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Wavelength:	SM:1310/1550nm MM: 850 /1300nm	Product Name:	Fiber Attenuator
Attenuation Level Range:	0~30dB	Return Loss:	PC:≥50dB UPC: ≥55dB APC: ≥60dB
Attenuation Tolerance:	±1dB	Polarization Dep Loss:	<0.2dB
Highlight:	voltage variable attenuator , single mode fiber attenuator

Features:
Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
FC, SC, ST, LC … optional
Plastic or metal housing material

Application:

Optical Fiber Communication Network

Passive optical networks

Data Transmission Network

CATV Fiber Optic Sensor

Local Area Networks(LANs)

Optic Instrumentation

Testing instrumentation

Specification:

Item	Unit	Parameter
Operating Wavelength	nm	SM:1310/1550nm MM: 850 /1300nm
Attenuation Range	dB	1-10dB(1dB step), 15, 20, 25, 30dB
Return Loss	dB	PC:≥50 UPC: ≥55 APC: ≥60
Attenuation Tolerance	dB	≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
