| Wavelength: | SM:1310/1550nm MM: 850/1300nm | Attenuation Range: | 1~30dB |
|---|---|---|---|
| Return Loss: | PC:≥50dB UPC: ≥55dB APC: ≥60dB | Product Name: | Fiber Attenuator |
| Attenuation Tolerance: | ± 0.5dB,±1dB | Polarization Dep Loss: | ≤0.1dB |
| Highlight: | fixed optical attenuator,single mode fiber attenuator |
||

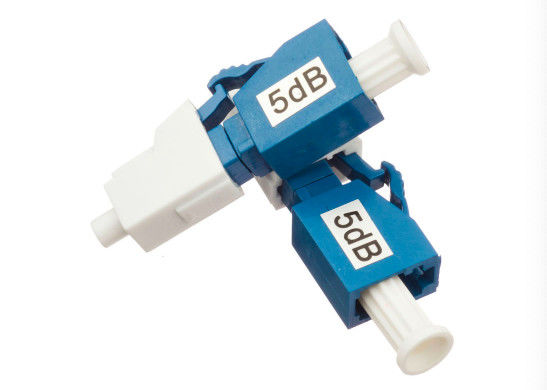

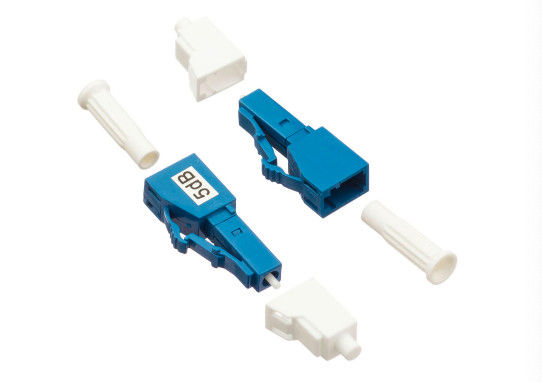

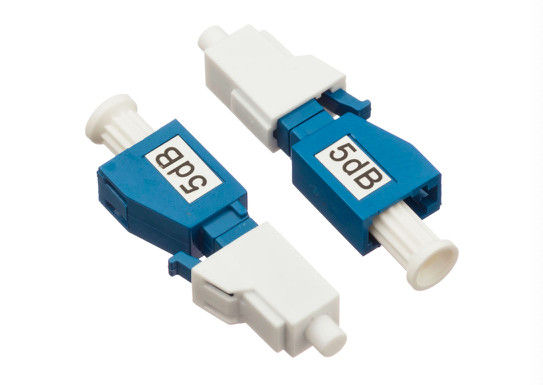

LC / PC Plug Fixed Type optical fiber Attenuator , 5dB Singlemode simplex plastic
The Connected Fibers premium fixed attenuators are manufactured with zirconia ferrules and have highly accurate attenuation using doped fiber. These high quality attenuators can be utilized for many applications ranging from telecom, CATV, datacom, medical, and military applications. You can be confident in their performance to control the power of your system.
Applications:
Fiber optic systems
CATV and telecommunication systems
Receiver padding for optical receiver protection
Optical power equalization
Specification:
| Item | Parameter |
| Model | Fixed, Female&Male, In-line, Variable |
| Operating Wavelength | SM:1310/1550nm MM: 850/1300nm |
| Attenuation Range | 1~30dB |
| Return Loss | PC:≥50dB UPC: ≥55dB APC: ≥60db |
| Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Maximum Optical Input Power | 1000mW |
| Polarization Dependent Loss | ≤0.1dB |
| Working Temperature | -40°C~+75°C |
| Storage Temperature | -40°C~+ 85°C |
| Humidity | 95%RH |
