| Fiber Simension:: | 125um | Insertion Loss:: | IL=<0.15dB |
|---|---|---|---|
| Return Loss:: | RL=>40dB | Tesnsile Strength:: | >3kg |
| Application:: | FTTH System | Operating Mode:: | SM&MM |
| Highlight: | fiber optic splicing,fiber cable splicing |
||

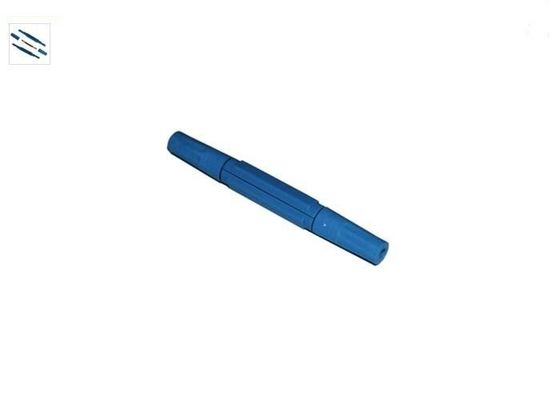

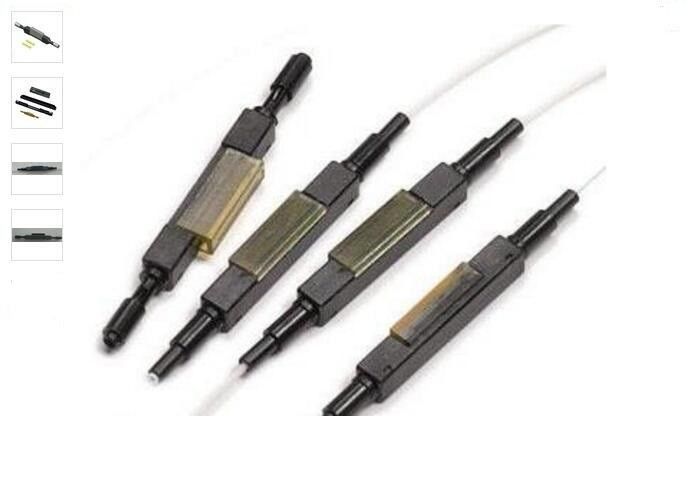

The Fiber Optic Mechanical Splicer is used for fast splice and has very good performance. Mechanical splicer can realize mechanical splice, Compared with the traditional hot melt technology, the biggest advantage is no welding machines to be needed, the power supply and other hard conditions. Anyway it can simply realize splice by manual and make the construction convenient. It can greatly reduce the cost of welding at the same time.
1. Features:
1. Substitute for joint of pre-embedded optical fiber connector at the scene and reduce the cost.
2. Industry-leading V-shape groove design and mechanical pressure connecting technology, the concentricity of jointed fiber is good.
3. The selection of high quality optical fiber match liquidwhich is less volatile ensures the long-term to work.
4. Fast splice without fusion machine
5. Low insertion loss
6. Good thermal and environmental stability
7. Good design for simple assemble
8. High tensile strength, small size, repeated use.
2. Application:
1. Telecommunication.
2. CATV & FTTH.
3. LAN & WAN.
4. Network.
5. Broadband.
6. Video and military active device termination
7. Optical Distribution Frame
8. Optical Network Equipments
9. Telecom network, Data network
10. Data transmission
11. LAN
12. Test equipment
3. Specification:
| IL | ≤0.15dB |
| RL | ≥40dB |
| Optical fiber diameter | 125μm |
| Operating Mode | Single and double mode |
| Tensile strength | >3kg |
| Operating Temperature | -40+85℃ |
| Bare fiber tautness | >250g |
