| Fiber Mode:: | SM&MM | Fasterning Strength Of Naked Fiber Holder:: | >8N |
|---|---|---|---|
| Using Temperature:: | -40 +75 | Average Insert Loss:: | <=0.2dB(1310nm & 1550nm) |
| Return Loss:: | <--40dB | Repeatability(10 Times):: | IL<=0.2dB RL<=5dB |
| Highlight: | fiber optic splicing,optical cable splicing |
||

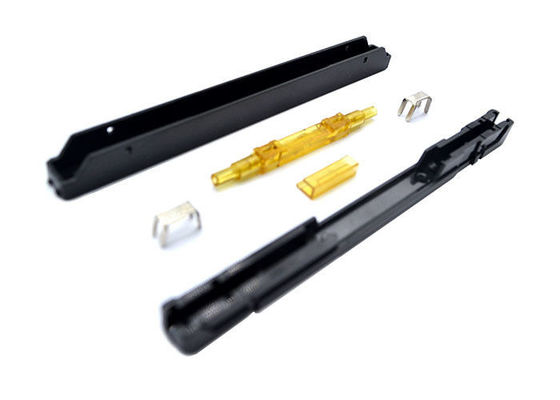

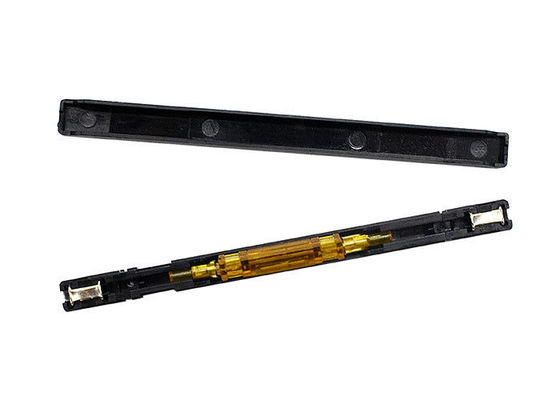

Fiber Optical Mechanical Splicer is used to connect single fiber and multiple fibers with the simple tooling and clamp.
1. Features:
Easily and rapidly operate with firm and reliable performance.
High reliability and low costs.
Good repeatability.
Excellent heat endurance.
Lower insert loss and higher return loss.
Long service time.
2. Application:
Apply to various single mode and multi-mode connection (diameter:0.25 to 0.25;0.9 to 0.9; 0.25 to 0.9). It can be used for LAN, FTTH, damaged lines repair and optical communication system.
3. Technical Parameters:
| ITEM | Technical Parameters |
| Applicable for | 0.25 mm &0.90 mm Fiber |
| Optical fiber diameter | 125μm ( 652 & 657 ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single and multi mode |
| Operation time | About 10s( no fiber cut ) |
| Insert loss | ≤ 0.1dB(1310nm & 1550nm) |
| Return loss | ≤ -40dB |
| Fastening strength of naked fiber | >5 N |
| Fastening strength of naked fiber holder | >8 N |
| Tensile strength | >90 N |
| Using temperature | -40~+75°C |
| Repeatability(10 times) | IL ≤ 0.2dB RL ≤ 5dB |
| Item | Parameters |
| IL change under circulatory testing as temperature change | <0.05dB@-40℃~+80℃ |
| Operating temperature | -40℃~+80℃ |
| IL change under vibration | ≤0.05 dB |
| IL change when immersing it in the water | ≤0.1 dB |
| Service life | ≥35years |
