Product Details:
Payment & Shipping Terms:
|
| Fiber Mode:: | SM&MM | Fasterning Strength Of Naked Fiber Holder:: | >8N |
|---|---|---|---|
| Operation Time:: | About 60s | Average Insert Loss:: | <=0.2dB(1310nm & 1550nm) |
| Return Loss: | <--40dB | Fasterning Strength Of Naked Fiber:: | >5N |
| Highlight: | fiber optic splicing,fiber cable splicing |
||

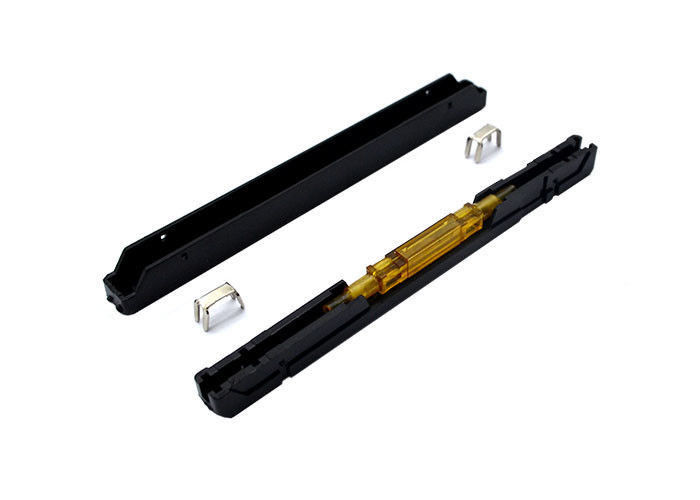

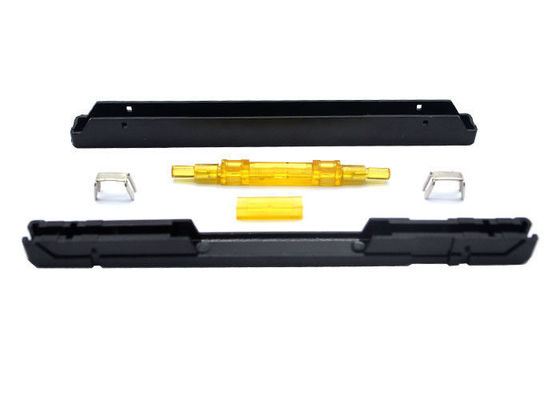

Fiber Optical Mechanical Splicer is used to connect single fiber and multiple fibers with the simple tooling and clamp.
1. Features:
Easily and rapidly operate with firm and reliable performance.
High reliability and low costs.
Good repeatability.
Excellent heat endurance.
Lower insert loss and higher return loss.
Long service time.
2. Application:
Apply to various single mode and multi-mode connection (diameter:0.25 to 0.25;0.9 to 0.9; 0.25 to 0.9). It can be used for LAN, FTTH, damaged lines repair and optical communication system.
3. Technical Parameters:
| Item | Parameters |
| Average insertion loss | ≤0.2dB |
| Return loss | ≥50dB |
| Insertion times | 50times |
| Operating time | 30s |
| Tensile strength | ≥500g |
| Item | Parameters |
| IL change under circulatory testing as temperature change | <0.05dB@-40℃~+80℃ |
| Operating temperature | -40℃~+80℃ |
| IL change under vibration | ≤0.05 dB |
| IL change when immersing it in the water | ≤0.1 dB |
| Service life | ≥35years |
