Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 1260~1650 | Color: | Black |
|---|---|---|---|
| Name: | Optical Patch Panel | Feature: | Rack Mount |
| Application:: | Telecom Network / CATV System | Standard:: | IS09001-2008.ROHS |
| Highlight: | fused fiber coupler,lc fiber coupler |
||

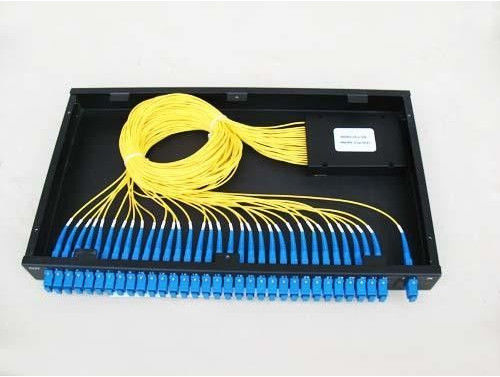

1260 ~ 1650 nm PLC Optical Fiber Splitter For Telecom Network / CATV system
Features
Applications
Specifications
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
| Fiber Type | 9/125 um SMF-28e or customer appoint | ||||||||||||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||||
| Insertion Loss(dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 | 4.0 | 7.0 | 10.5 | 13.5 | 16.5 | 20.5 |
| (P/S)Max | 3.8/ 4.0 |
7.1/ 7.3 |
10.2/ 10.5 |
13.5/ 13.7 |
16.5/ 16.8 |
20.5/ 21.0 |
4.1/ 4.3 |
7.4/ 7.6 |
10.8/ 11.0 |
14.3/ 14.5 |
17.3/ 17.5 |
20.7/ 21.5 |
|
| Loss Uniformity(dB)-Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | 0.8 | 0.8 | 1.5 | 2.0 | 2.5 | 2.5 | |
|
Polariation Dependent Loss(dB)-Max |
0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 | |
|
Dimension(WxHxL)(mm) Ribbon/Bare Fiber |
4×4 ×40 |
4×4 ×40 |
4×4 ×40 |
4x7 x50 |
4x7 x50 |
4x12 x60 |
4×4 ×50 |
4×4 ×50 |
4×4 ×50 |
4x7 x60 |
4x7 x60 |
4x12 x60 |
|
|
Dimension(WxHxL)(mm) ABS BOX(0.9, 2.0, 3.0mm) |
100x 80x10 |
120x80x18 | 141x114x18 | 100x80x10 | 120x80x18 | 141x114x18 | |||||||
| Directivity(dB)-Min | 55 | ||||||||||||
| Return Loss(dB)-Min | UPC:50 APC:60 | ||||||||||||
| Operating Temperature(℃) | -40~85 | ||||||||||||
| Storage Temperature(℃) | -40~85 | ||||||||||||
| Connector type | FC, SC.ST, LC, MU….. | ||||||||||||
Contact Person: Jason Zhang
Tel: +86-755-88898606
Fax: 86-755-61856508
