ABS 24 Port FBT Coupler ODF Distribution Box For LAN / WAN Cable Customized Color

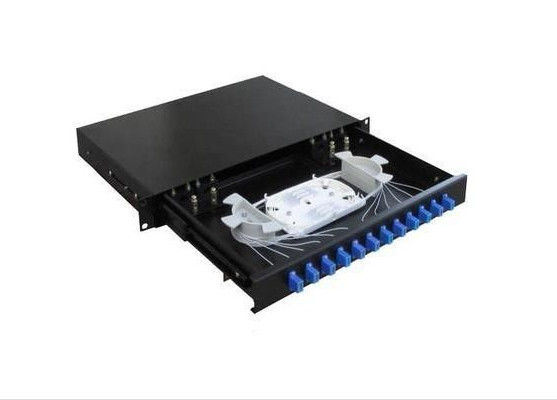

: Large Image : ABS 24 Port FBT Coupler ODF Distribution Box For LAN / WAN Cable Customized Color

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008.ROHS
Model Number:	24 core Fiber optic patch panel

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	Carton Box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Model Number:	RM-Fiber Optic Patch Panel	Product Name:	24 Core Fiber Optic Patch Panel Rack Mount ODF Distribution Box
Name:	Fiber Optic Patch Panel	Color:	Black,white,gray Or Customized
Material:	ABS	Working Temperture:	-40℃ To +60℃
Highlight:	fused fiber coupler , lc fiber coupler

24 core Fiber optic patch panel rack mount ODF distribution box

Detail

Fiber Optic ODF Box series are designed to 19" standard structure. They are all made of cold-rolled steel with electrostatic spraying. These boxes can be applied in the branch connection of optical fiber termination, working as distribution box. They are also available for the installation of FC, SC, ST, LC adapters.

Specifications

Type	Dimension (mm)	Size(mm)	Weight (kg)	Max capacity (cores)	Packing size (mm)	Packing weight (kg)	No./CTN
JJ-SC12	480x250x1U	465x285x75	2.6kg	12	485x425x305	14.2kg	5 pcs
JJ-SC24	480x250x1U	465x285x75	2.6kg	24	485x425x305	14.2kg
JJ-SC48	480x250x2U	465x285x125	3.8kg	48	675x485x305	21.0kg
JJ-FC12	480x250x1U	465x285x75	2.6kg	12	485x425x305	14.2kg
JJ-FC24	480x250x1U	465x285x75	2.6kg	24	485x425x305	14.2kg
JJ-FC48	480x250x2U	465x285x125	3.8kg	48	675x485x305	21.0kg
JJ-ST12	480x250x1U	465x285x75	2.6kg	24	485x425x305	14.2kg
JJ-ST24	480x250x1U	465x285x75	2.6kg	2	485x425x305	14.2kg
