High Density FBT Coupler Patch Panel Distribution Frame ODF 19 " Width ROHS Listed

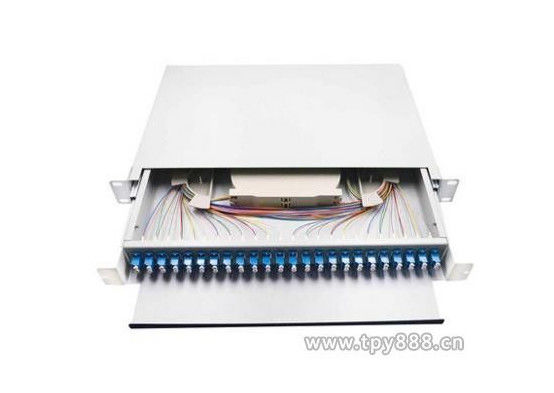

: Large Image : High Density FBT Coupler Patch Panel Distribution Frame ODF 19 " Width ROHS Listed

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008.ROHS
Model Number:	24 Cores Patch Panel

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	Carton box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Name:	Rack Mount Fiber Patch Panel	Type:	Optical Fiber Distribution Box
Specification::	ROHS	Material Of The Metal Box:::	Steel Plates And Aluminum Alloy
Color:	White	Wiring Devices::	Integrated Wiring
Highlight:	fused fiber coupler , lc fiber coupler

24 48 72 96 Cores Patch Panel Fiber Optic Distribution Frame ODF

Features

Standard 19" width
Capacity: 1-144fibers, 12fibers each module
The fusion splicing and distribution module is with sliding and can be pulled out separately.
Material of the metal box: Steel plates and aluminum alloy
Suitable for inserting installation of SC, FC, ST and LC adaptor

24-core Fusion Splicing and Distributing Module

Material of the module: Plastic
Adaptor installation and fusion splicing points fixed in the module
Suitable for ribbon and common cables
Fusion splicing and distributing can be operated in the same working panel.
Install adaptor respectively.
It is better to use 0.9mm pigtail in the module

Technical Data:

Item	fiber optic terminal box
size	26513240
Material	Cold rolled steel
Max capacity	24 port
Installation type	wall-mounted
Pigtail type	SC/FC.LC.ST
Operating Temperature:	-25~+40 ℃.
Relative Humidity	≤85%(+30 ℃)
Insulation Resistance	>2*10^4MΩ
Anti-dielectric	<15KV
