Simplex / Duplex FBT Coupler Rack Mount Patch Panel Outdoor With SC FC ODF Adapter

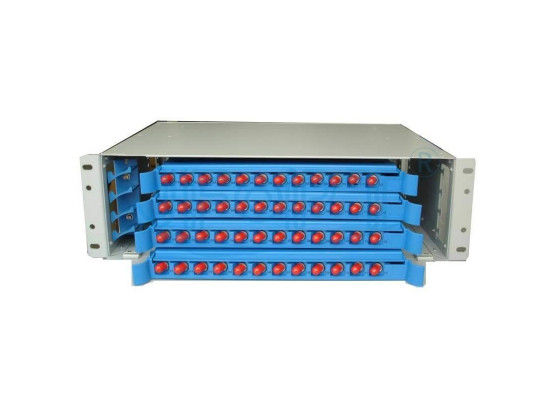

: Large Image : Simplex / Duplex FBT Coupler Rack Mount Patch Panel Outdoor With SC FC ODF Adapter

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008.ROHS
Model Number:	Fiber Patch Panel

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	Carton Box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Model Number:	ODF 48 Cores	ODF Tray::	48 Cores
Fiber Type:	Simplex/Duplex	Color:	White/Black/Gray
ODF Adapter:	SC/FC	Working Temp:	-20°C~+55°C
Highlight:	fused fiber coupler , lc fiber coupler

48 port Outdoor Fiber Optic ODF / main Distribution Frame price / Patch Panel

Technical Information:

Type: Cable installation, RACK mount

Size: 460*300*340mm

Capacity: 48 SC, 96 LC

Connector options: SC FC

Features

Standard size, light weight and reasonable structure
Splice tray inside changeable
Can be used in 19'', 23'' standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN / WAN

Specifications

Environmental temperature:	-25- 55°C
Relative humidity:	<85%(when the temperature is below 30°C)
Atmosphere pressure:	70~106Kpa
Insulating resistance:	>2×104 MΩ/500VDC
Voltage-resistance strength:	Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
