Telecommunication FBT Coupler Fiber Distribution Unit Six Pack / Plug In Style

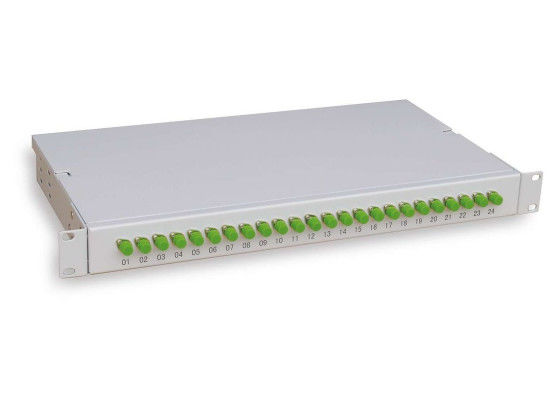

: Large Image : Telecommunication FBT Coupler Fiber Distribution Unit Six Pack / Plug In Style

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS09001-2008.ROHS
Model Number:	24 ports optical odf distribution box

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	Carton box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Type::	24 Ports Optical Odf Distribution Box	Application::	All Kinds Of Optical Distribution Frame Or Cabinet
Adapter Panels::	Six Pack And Plug-in Style	Material::	Aluminum Alloys OR Cold Rolled Steel
Accessary::	With All Accessaries, With FC(SC)/APC Adapters And Pigtails	Name::	Optical Fiber Patch Panel
Highlight:	lc fiber coupler , pm fiber coupler

rack mount 19 fiber optic odf 24 port optical fiber patch panel

Features

Two-core rotary distribution module is vertically arranged and can be rotated out of the box for easy operation, management and maintenance
Adapter panels are selectable with FC / SC / ST / LC type
Splicing unit is removable and suitable for field operation and maintenance
Unique plastic retainer clips for optical fibers are attached, protecting the spliced fibers sufficiently

Specifications

Type	Dimension(mm)HWD	Capacity(cores)	Equipped Height(U)	Remark
GPXX-B12a	H44W482D320	12 cores	1U	With all accessaries, but not including adapter and pigtail
GPXX-B12b	H44W482D320	12 cores	1U	with FC(SC,ST)/PC adapters
GPXX-B12c	H44W482D320	12 cores	1U	with FC(SC,ST)/PC adapters and pigtails
GPXX-B12d	H44W482D320	12 cores	1U	with FC(SC)/APC adapters and pigtails
GPXX-B24a	H88W482D320	24 cores	2U	With all accessaries, but not including adapter and pigtail
GPXX-B24b	H88W482D320	24 cores	2U	with FC(SC,ST)/PC adapters
GPXX-B24c	H88W482D320	24 cores	2U	with FC(SC,ST)/PC adapters and pigtails
GPXX-B24d	H88W482D320	24 cores	2U	with FC(SC)/APC adapters and pigtails

Type	Dimension(mm)HWD	Capacity(cores)	Equipped Height(U)	Remark
GPXX-BL24	H44W482D300	24 cores	1U	With all accessaries, but not including adapter and pigtail
GPXX-BL48	H88W482D300	48 cores	2U	With all accessaries, but not including adapter and pigtail
