High Accurate 8 Channel Multiplexer , Central Wavelength Mux And Demux Low Insertion Loss

China High Accurate 8 Channel Multiplexer , Central Wavelength Mux And Demux Low Insertion Loss supplier
High Accurate 8 Channel Multiplexer , Central Wavelength Mux And Demux Low Insertion Loss supplier High Accurate 8 Channel Multiplexer , Central Wavelength Mux And Demux Low Insertion Loss supplier High Accurate 8 Channel Multiplexer , Central Wavelength Mux And Demux Low Insertion Loss supplier

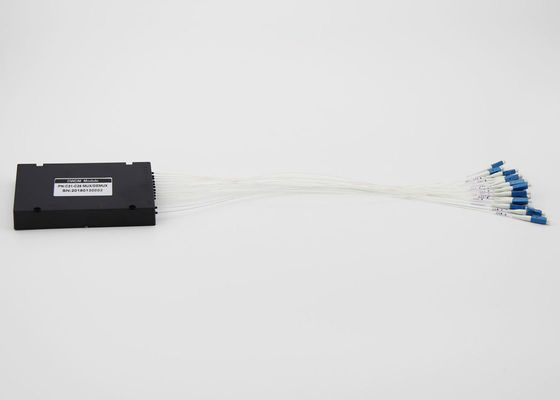

Large Image :  High Accurate 8 Channel Multiplexer , Central Wavelength Mux And Demux Low Insertion Loss

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: J&K
Certification: UL; SGS; ROHS
Model Number: DWDM

Payment & Shipping Terms:

Minimum Order Quantity: 5PCS
Price: Negotiation
Packaging Details: Plastic box
Delivery Time: 3~5days
Payment Terms: L/C, T/T
Detailed Product Description
Product Name: MUX/DEMUX Opterating Temperature (℃): -20~85℃
Application: FTTH FTTB FTTX Network Storage Temperature: -40~85°C
Directivity (dB): ≥50 Return Loss (dB): ≥45
Highlight:

fiber mux demux

,

mux and demux

100G High Accurate Central Wavelength 8Channels DWDM ABS Box With LC/UPC Connectors



100G 8Ch DWDM ABS Box is for 100G transmission system,high accurate central wavelength,high stability.

It's used to backbone and data center.



Applications:

  • 100GHz ITU Channel Spacing
  • WDM-PON
  • Router
  • Backbone and Datacenter
  • DWDM system

Features:

  • Low insertion loss
  • broadband transmission
  • high channel isolation
  • High stability and reliability
  • Epoxy-free optical path

Specifications:







Mux Demux
Channel Wavelength (nm) 1530.33~1560.61(21~59 ITU grid)
Central Wavelength Accuracy (nm) ± 0.05
Min Channel Spacing (GHz) ITU 100Ghz Grid
Passband (@-0.5dB bandwidth)(nm) >0.22
Insertion Loss(dB) Add/Drop Ch. ≤3.5
Reflective Ch. ≤0.4
Passband Flatness(dB) ≤0.3
Add/Drop channel Isolation(dB) Adjacent Channel N/A ≥25
Non-adjacent Channel N/A ≥35
Reflective Isolation(dB) ≥12
Insertion Loss Temperature (dB/°C ) ≤0.003
Wavelength Temperature Shifting (nm/ °C ) ≤0.002
PDL (dB) ≤0.1
PMD (ps) ≤0.1
Directivity (dB) ≥50
Return Loss (dB) ≥45
Rated power (mW) 500
Operation Temperature (°C) -20 ~ +85
Storage Temperature (°C) -40 ~ +85
Dimension (mm) L100×W80×H10

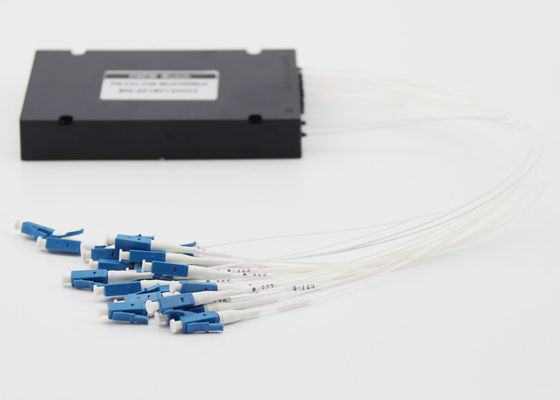

High Accurate 8 Channel Multiplexer , Central Wavelength Mux And Demux Low Insertion Loss

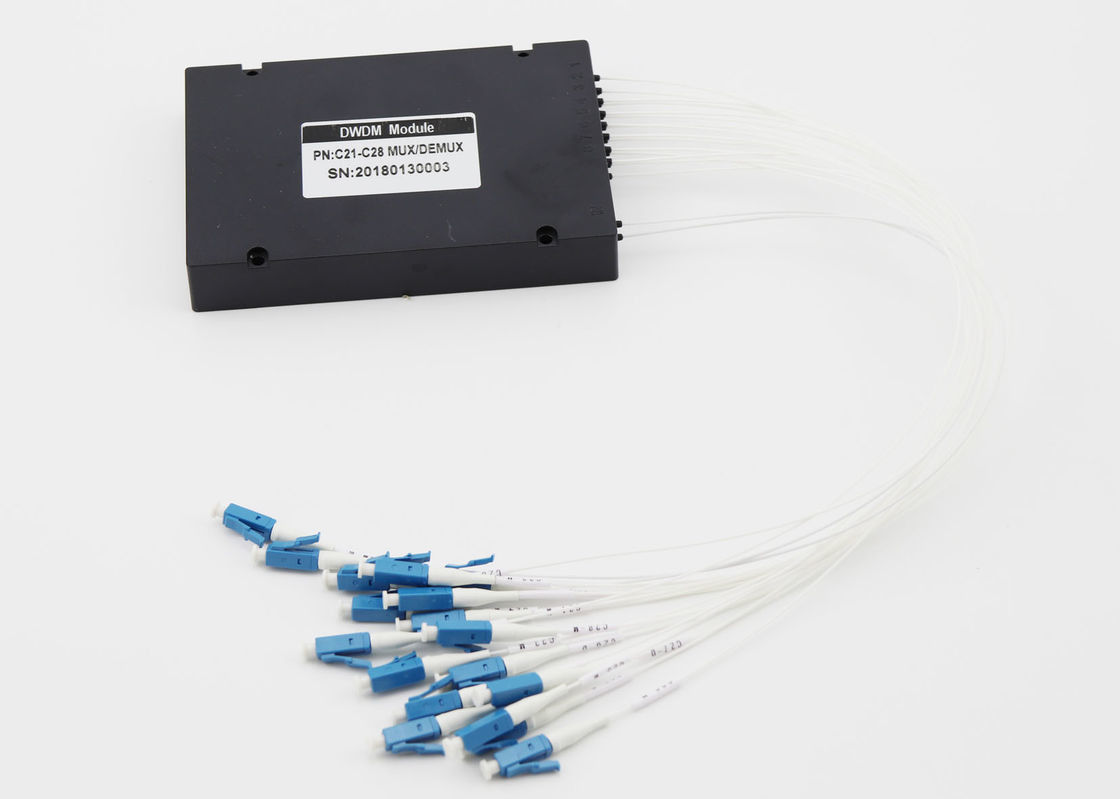

High Accurate 8 Channel Multiplexer , Central Wavelength Mux And Demux Low Insertion Loss
