Product Details:
Payment & Shipping Terms:
|
| Product Name: | MUX/DEMUX | Operating Temperature: | 0~85℃ |
|---|---|---|---|
| Storage Temperature: | -40 ~+85°C | Application: | FTTH FTTB FTTX Network |
| Directivity (dB): | ≥50 | Return Loss (dB): | ≥45 |
| Highlight: | fiber mux demux,optical mux demux |
||

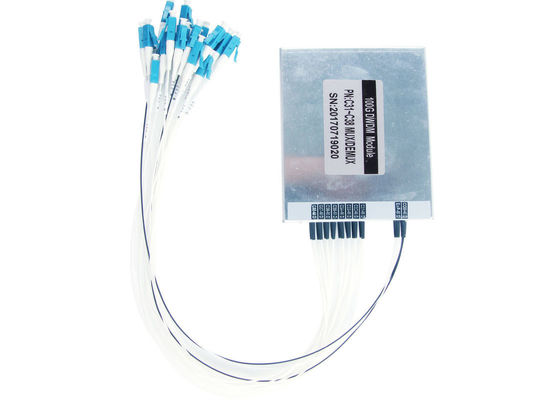

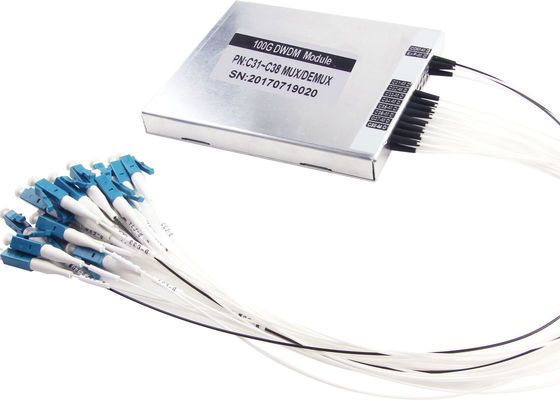

100G DWDM Alu BOX LC/UPC Connectors With High Central Wavelength Accuracy
100G DWDM Alu Box is designed for stability requirment.Its package is aluminum,diiferent with ABS material.
This product can be made to be more channels,usually under 18 channels.
Applications:
Features:
Specifications:
|
|
Mux | Demux | |
| Channel Wavelength (nm) | 1530.33~1560.61(21~59 ITU grid) | ||
| Central Wavelength Accuracy (nm) | ± 0.1 | ||
| Min Channel Spacing (GHz) | ITU 100Ghz Grid | ||
| Passband (@-0.5dB bandwidth)(nm) | >0.22 | ||
| Insertion Loss(dB) | Add/Drop Ch. | ≤1.0 | |
| Reflective Ch. | ≤0.4 | ||
| Passband Flatness(dB) | ≤0.3 | ||
| Add/Drop channel Isolation(dB) | Adjacent Channel | N/A | ≥25 |
| Non-adjacent Channel | N/A | ≥35 | |
| Reflective Isolation(dB) | ≥12 | ||
| Insertion Loss Temperature (dB/°C ) | ≤0.003 | ||
| Wavelength Temperature Shifting (nm/ °C ) | ≤0.002 | ||
| PDL (dB) | ≤0.1 | ||
| PMD (ps) | ≤0.1 | ||
| Directivity (dB) | ≥50 | ||
| Return Loss (dB) | ≥45 | ||
| Rated power (mW) | 500 | ||
| Operation Temperature (°C) | 0 ~ +85 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | L100×W80×H10 | ||
