| Product Name: | MUX/DEMUX | Operating Temperature: | -20~85℃ |
|---|---|---|---|
| Storage Temperature: | -40+85°C | Directivity (dB): | ≥50 |
| Return Loss (dB): | ≥45 | Application: | FTTH FTTB FTTX Network |
| Highlight: | optical mux demux,mux and demux |
||

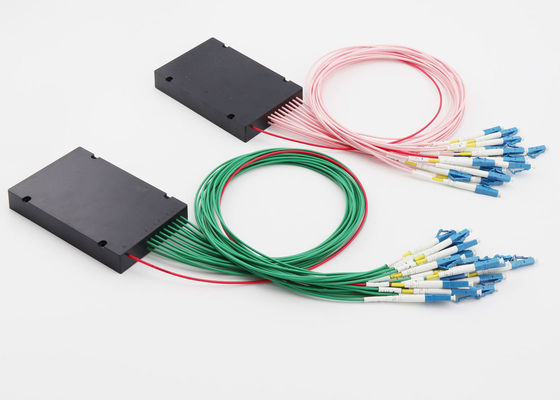

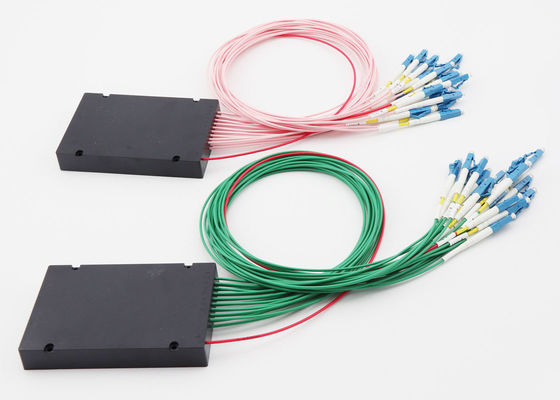

8Ch 100G MUX/DEMUX DWDM ABS Module With UPG Port LC/UPC Connectors
This DWDM ABS BOX is compliant to ITU 100Ghz Grid with high central wavelength accuracy,0.05nm.
It's usually made to 1U Chassis,used to DWDM system,backbone,etc.
Applications:
Features:
|
Parameter:
|
|||
| Channel Wavelength (nm) | 1530.33~1560.61(21~59 ITU grid) | ||
| Central Wavelength Accuracy (nm) | ± 0.05 | ||
| Min Channel Spacing (GHz) | ITU 100Ghz Grid | ||
| Passband (@-0.5dB bandwidth)(nm) | >0.22 | ||
| Insertion Loss(dB) | Add/Drop Ch. | ≤1.0 | |
| Reflective Ch. | ≤0.4 | ||
| Passband Flatness(dB) | ≤0.3 | ||
| Add/Drop channel Isolation(dB) | Adjacent Channel | N/A | ≥25 |
| Non-adjacent Channel | N/A | ≥35 | |
| Reflective Isolation(dB) | ≥12 | ||
| Insertion Loss Temperature (dB/°C ) | ≤0.003 | ||
| Wavelength Temperature Shifting (nm/ °C ) | ≤0.002 | ||
| PDL (dB) | ≤0.1 | ||
| PMD (ps) | ≤0.1 | ||
| Directivity (dB) | ≥50 | ||
| Return Loss (dB) | ≥45 | ||
| Rated power (mW) | 500 | ||
| Operation Temperature (°C) | -20~ +85 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | L120×W100×H10 | ||
