Product Details:
Payment & Shipping Terms:
|
| Product Name: | MUX/DEMUX | Return Loss: | ≥40dB |
|---|---|---|---|
| Opterating Temperature (℃): | -5~65℃ | Storage Temperature: | -40 ~+85°C |
| Polarization Dependent Loss(PDL): | ≤0.5dB | Application: | FTTH FTTB FTTX Network |
| Highlight: | optical mux demux,mux and demux |
||

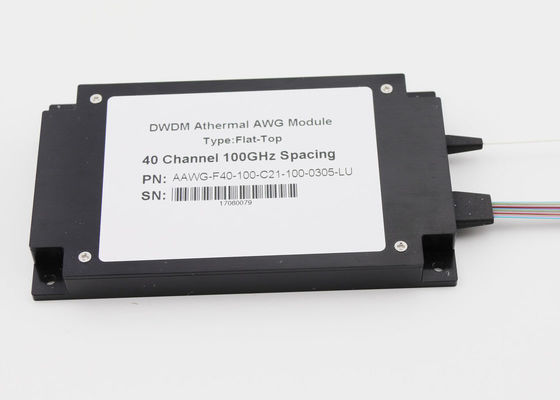

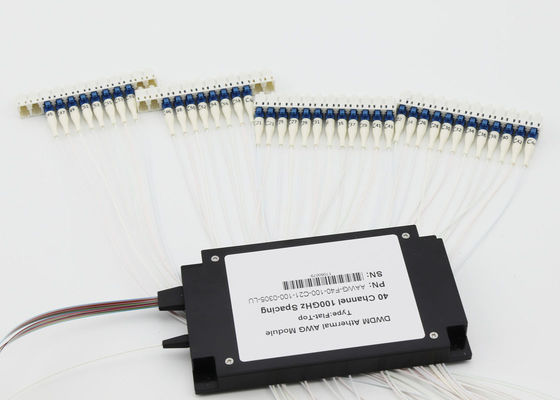

40Ch 100G AAWG ABS Box With LC/UPC Connectors Max IL 5.0dB
40Ch AWG ABS Box is used to make AWG 1U Rack usually.It's for WDM-PON,specially for 5G front haul,datacenter,backbone network etc.
We can offer good and stable type,Max IL 5.0dB.
Applications:
Features:
Specifications:
| Parameter | Unit | Value | ||
| Pass Band Type | Flat-top | Gaussian | ||
| Channel Spacing | GHz | 100 | ||
| Channel Number | 48/40 | |||
| Wavelength Accuracy | nm | ±0.05 | ||
| 1dB Pass Band 1dB | nm | ≥0.38 | 0.2 | |
| 3dB Pass Band 3dB | nm | ≥0.58 | 0.4 | |
| Insertion Loss1 | dB | ≤6.0 | 5.0 | |
| Ripple | dB | ≤0.5 | ||
| Uniformity | dB | ≤1.5 | ||
| Adjacent Crosstalk | dB | ≥23 | ||
| Non-adjacent Crosstalk | dB | ≥29 | ||
| Total Crosstalk | dB | ≥21 | ||
| Polarization Dependent Loss(PDL) | dB | ≤0.5 | ||
| PMD2 | ps | ≤0.5 | ||
| Chromatic Dispersion2 | ps/nm | ±20 | ||
| Return Loss | dB | ≥40 | ||
| Fiber | Input Port | mm | Φ0.9 | |
| Output Ribbon | - | - | ||
| Fan Out | mm | Φ0.9 | ||
| Operation Temperature | ℃ | -5～+65 | ||
| Storage Temperature | ℃ | -40～+85 | ||
| Package | mm | 120×70×11 | ||
