Product Details:
Payment & Shipping Terms:
|
| Wavelength: | 1537.40nm | Product Name: | MUX/DEMUX |
|---|---|---|---|
| Operating Temperature: | -20~85℃ | Storage Temperature: | -40~85°C |
| Directivity (dB): | ≥50 | Return Loss (dB): | ≥45 |
| Highlight: | fiber mux demux,mux and demux |
||

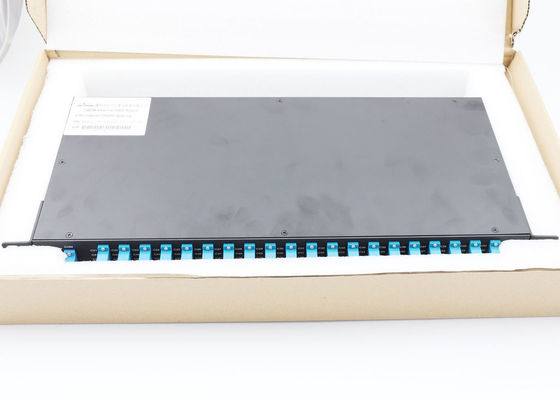

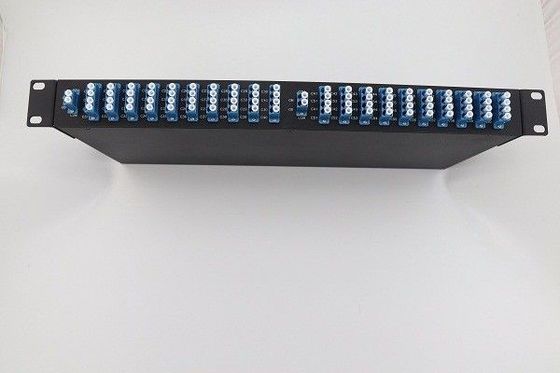

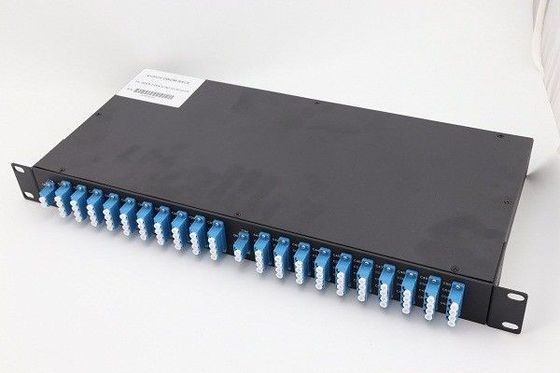

40Ch 100G MUX/DEMUX DWDM 1U Rack Mount with LC/UPC Connectors
This 40Ch MUX/DEMUX DWDM is different with AAWG,although their application is same.But their manufacturing technique is different.This 40Ch is made by TFF(thin film filter) technology,and AAWG is made by array wavelength grating technology.
Usually,under 24Ch,suggest to use TFF type,up to 24Ch,advise to use AAWG.The cost and manufacture time is different between them.
Applications:
Channel Mux/Demux
Features:
Specifications:
|
|
Mux | Demux | |
| Channel Wavelength (nm) | 1529.16~1560.61(21~60 ITU grid) | ||
| Central Wavelength Accuracy (nm) | ± 0.05 | ||
| Min Channel Spacing (GHz) | 100 | ||
| Passband (@-0.5dB bandwidth)(nm) | >0.22 | ||
| Insertion Loss(dB) | Add/Drop Ch. | ≤1.0 | |
| Reflective Ch. | ≤0.4 | ||
| Passband Flatness(dB) | ≤0.3 | ||
| Add/Drop channel Isolation(dB) | Adjacent Channel | N/A | ≥25 |
| Non-adjacent Channel | N/A | ≥35 | |
| Reflective Isolation(dB) | ≥12 | ||
| Insertion Loss Temperature (dB/°C ) | ≤0.003 | ||
| Wavelength Temperature Shifting (nm/ °C ) | ≤0.002 | ||
| PDL (dB) | ≤0.1 | ||
| PMD (ps) | ≤0.1 | ||
| Directivity (dB) | ≥50 | ||
| Return Loss (dB) | ≥45 | ||
| Rated power (mW) | 500 | ||
| Operation Temperature (°C) | -20 ~ +85 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | Standard 1U Rack Mount | ||
