Product Details:
Payment & Shipping Terms:
|
| Max IL: | ≤2.5dB | Directivity: | >50dB |
|---|---|---|---|
| Return Loss: | >45dB | Operating Temperature: | -20～+85℃ |
| Storage Temperature: | -40～+85℃ | Channel Spacing: | 20nm |
| Highlight: | optical add drop multiplexer,mux demux cwdm |
||

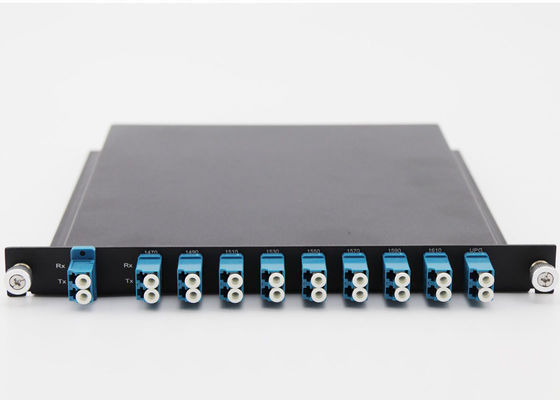

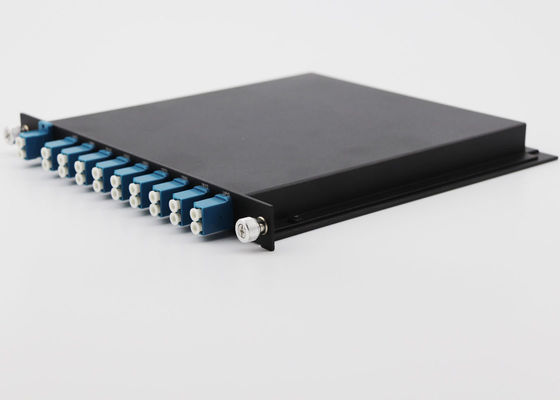

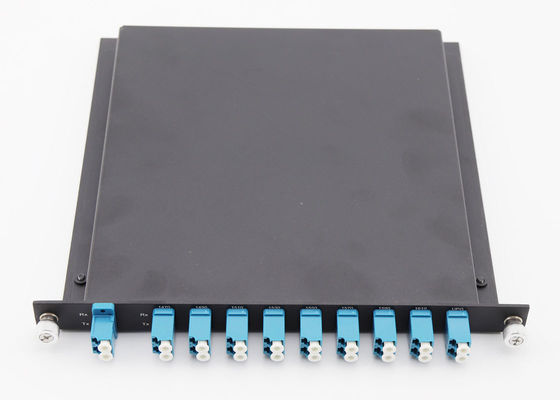

8Ch CWDM LGX With UPG Max IL 2.5dB fix into 1U Rack Mount , Four In One 1U Rack
This CWDM LGX is special design,four this time LGX can fix into 1U Rack.It's channel number is 8,with UPG or Without UPG.
Our Advantage:
●Low insertion loss
●broadband transmission
●high isolation
●High stability and reliability
●epoxy glue
Applications:
1. Metro/Access networks
2. WDM-PON
3. Fiber optical amplifier
4. CATV system
Specifications:
| Parameter | Unit | Value |
| Channel Number | pcs | 1xN or 2XN |
| Passband Central Wavelength | nm | 1270~1610 or 1271~1611 |
| Channel Spacing | nm | 20 |
| Center Wavelength Accuracy | nm | ±0.5 |
| Passband (Bandwidth @ -0.5dB) | dB | ±7.5& ±6.5 |
| Insertion Loss Pass Channel | dB | Max≤2.5dB |
| Insertion Loss Reflect Channel | dB | ≤0.3 |
| Isolation Adjacent Channel | dB | ≥30 |
| Isolation Non-Adjacent Channel | dB | ≥45 |
| Pass band Flatness | dB | 0.3 |
| Inertion Loss Temperature Sensitivity | dB/℃ | ﹤0.005 |
| Wavelength Temperature Shifting | nm/℃ | ﹤0.002 |
| Polarization Dependent Loss(PDL) | dB | ﹤0.1 |
| Polarization Mode Dispersion (PMD) | dB | ﹤0.1 |
| Directivity | dB | >50 |
| Return Loss | dB | >45 |
| Fiber Length | m | customized |
| Fiber Type | um | SMF-28e With 900um Loose or Tight Tube |
| Rated Power | mW | 500 |
| Operating Temperature | ℃ | -20～+85 |
| Storage Temperature | ℃ | -40～+85 |
| Package Dimension | mm | LGX |
