| Channel Number: | 4,8,16,18 Channels | Directivity (dB): | >50 |
|---|---|---|---|
| Return Loss (dB): | >45 | Rated Power (mW): | 500 |
| Operating Temperature: | -20~85℃ | Storage Temperature (°C): | -40~85℃ |
| Highlight: | optical add drop multiplexer,mux demux cwdm |
||

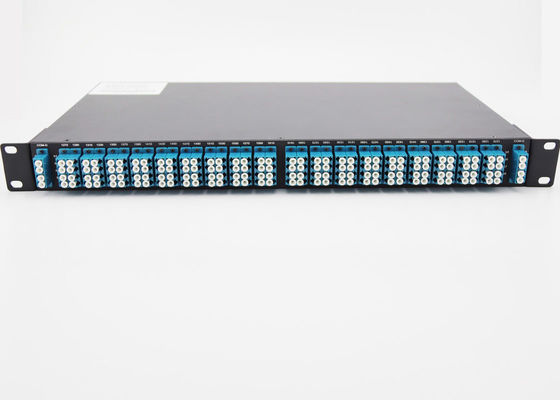

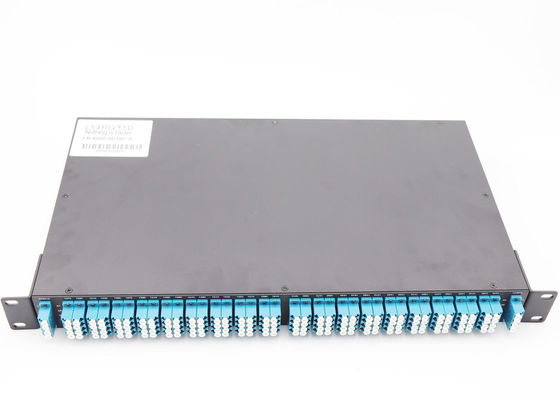

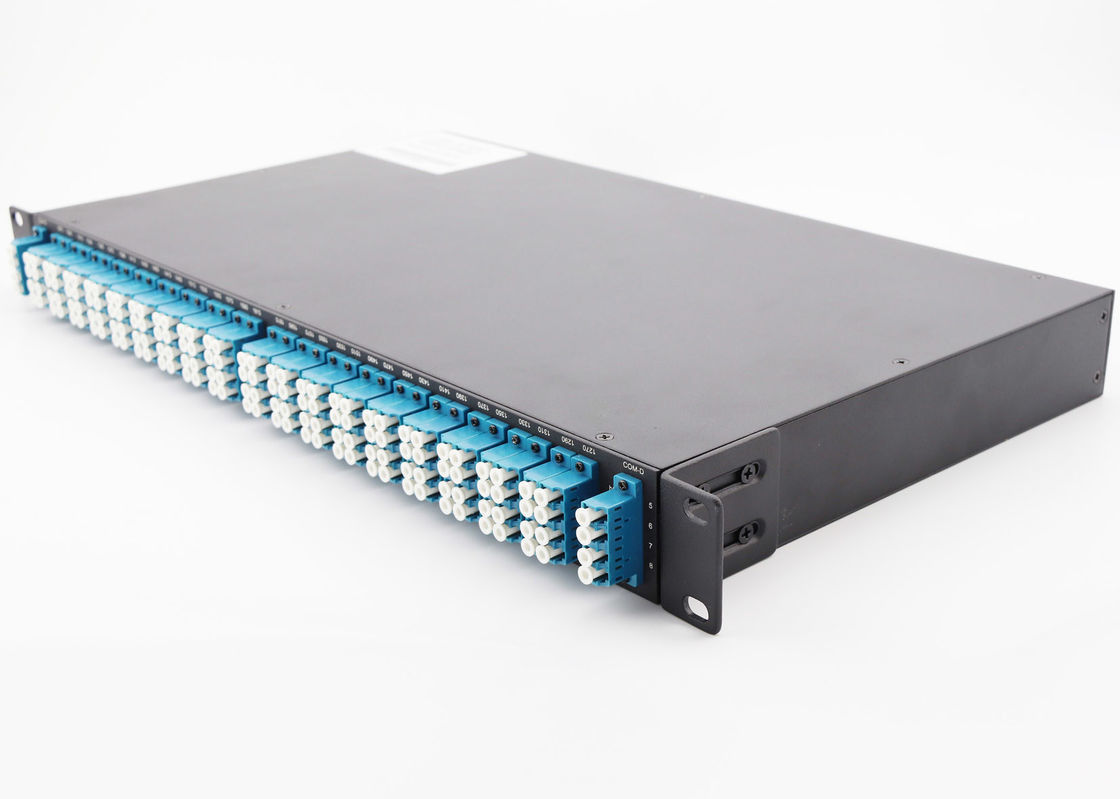

CWDM MUX/DEMUX 1U Rack Mount 1270-1610NM with LC/UPC Connector
CWDM MUX/DEMUX 1U Rack Mount also call 1U Chassis.It design for WDM-PON system.In one 1U Rack Mount,it realizes bidirectional(two way) transmission over dual fiber.There are usually several types of channels,4Ch,8Ch,10Ch,16Ch,18CH,the channel number according to customer requirements.Max Channel is 18Ch.
Features:
Applications:
Specifications:
| Parameter | Value | ||
| CWDM Channels Number | 4Ch 8Ch 16Ch 18Ch | ||
| Operation Wavelength (nm) | 1270~1610 OR 1271~1611 | ||
| Center wavelength accuracy (nm) | ± 0.5 | ||
| Channel Spacing (nm) | 20 | ||
| Passband (@-0.5dB bandwidth)(nm) | ±7.5 & ±6.5 | ||
| Insertion Loss(dB) | 4CH/1.5 | 8Ch/2.5 | |
| Pass band Flatness(dB) | 0.3 | ||
|
Isolation(dB)
|
Adjacent Channel | 30 | |
| Non-adjacent Channel | 45 | ||
| Insertion Loss Temperature Sensitivity (dB/°C ) | <0.005 | ||
| Wavelength Temperature Shifting (nm/ °C ) | <0.002 | ||
| PDL (dB) | <0.10 | ||
| PMD (ps) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return Loss (dB) | >45 | ||
| Rated power (mW) | 500 | ||
| Operation Temperature (°C) | -20 ~ +85 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | Standard 1U Rack Mount | ||
