| Operating Wavelength: | 1260~1610nm | Channel Spacing (nm): | 20 |
|---|---|---|---|
| Insertion Loss(dB): | 0.4 | Directivity (dB): | >50 |
| Return Loss (dB): | >45 | Operation Temperature (°C): | -20 ~ +85 |
| Highlight: | optical add drop multiplexer,mux demux cwdm |
||

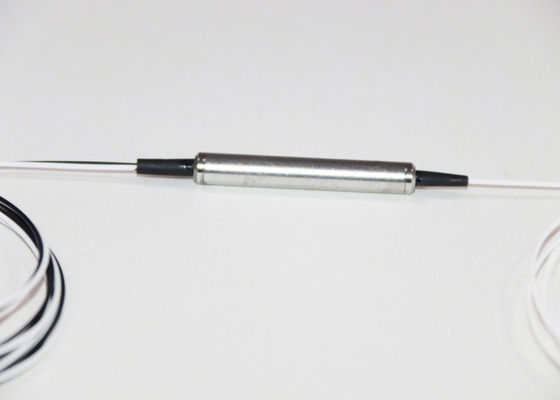

2x2 CWDM Device with 250um G657A1 Corning Firber without Connector
It's a special CWDM device,used to make CWDM module,operating wavelength is 1260~1610nm.
Applications:
Features:
Specifications:
| Parameter | Value | ||
| CWDM Channels Number | 2x2 | ||
| Operation Wavelength (nm) | 1260~1610 OR 1261~1611 | ||
| Center wavelength accuracy (nm) | ± 0.5 | ||
| Channel Spacing (nm) | 20 | ||
| Passband (@-0.5dB bandwidth)(nm) | ±7.5 & ±6.5 | ||
| Insertion Loss(dB) | 0.4 | ||
| Pass band Flatness(dB) | 0.3 | ||
|
Isolation(dB)
|
Adjacent Channel | 30 | |
| Non-adjacent Channel | 45 | ||
| Insertion Loss Temperature Sensitivity (dB/°C ) | <0.005 | ||
| Wavelength Temperature Shifting (nm/ °C ) | <0.002 | ||
| PDL (dB) | <0.10 | ||
| PMD (ps) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return Loss (dB) | >45 | ||
| Rated power (mW) | 500 | ||
| Operation Temperature (°C) | -20 ~ +85 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | Glass Tube or Matel Tube | ||
