Product Details:
Payment & Shipping Terms:
|
| Channel Number: | 8 Channels | Operating Wavelength: | 1260~1610nm |
|---|---|---|---|
| Return Loss: | 45dB | Directivity: | 55dB |
| Operating Temperature: | 0~+70℃ | Storage Temperature: | -40~+85℃ |
| Highlight: | optical add drop multiplexer,mux demux cwdm |
||

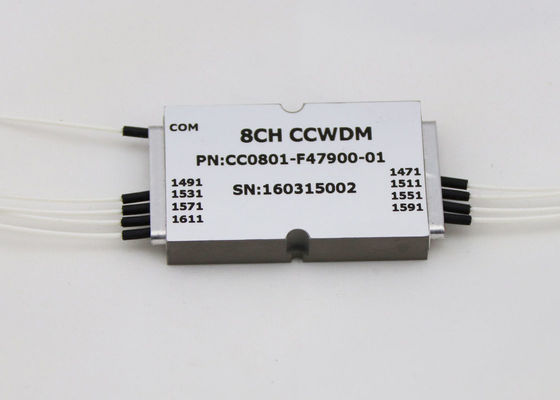

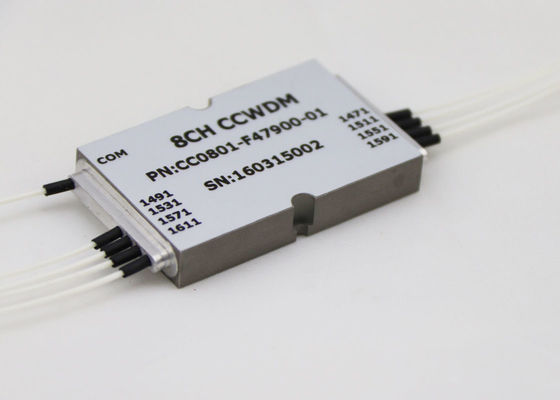

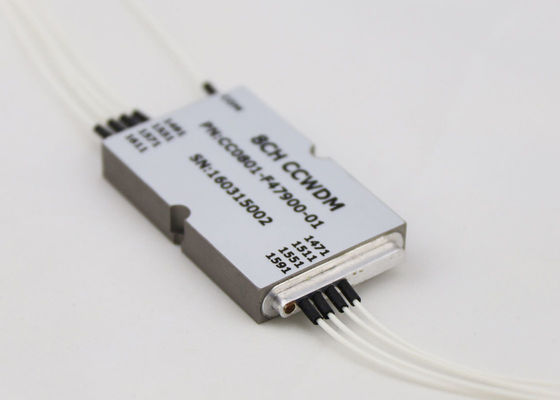

This type of CWDM module is not Mini CWDM,it's CCWDM,compact CWDM.Its application is same with general CWDM,the different is package dimension.
Applications:
Features:
Specifications:
| Parameters | Unit | Min | Typical | Max | |
| Channel Number | CH | 8+1 | |||
| Operation Wavelength | nm | 1260~1620 | |||
| Channel Wavelength | nm | 1471 1491 1511 1531 1551 1571 1591 1611 | |||
| Channel Insertion Loss | dB | 1.2 | 1.8 | ||
| Passband Bandwidth | nm | 13 | 15 | ||
| Channel Ripple | dB | 0.3 | 0.5 | ||
| Adjacent Channel Isolation | dB | 30 | 35 | ||
| Non-Adjacent Channel Isolation | dB | 40 | 45 | ||
| Return Loss | dB | 45 | |||
| Directivity | dB | 55 | |||
| PDL | dB | 0.2 | |||
| PMD | ps | 0.2 | |||
| Power Handling | mW | 300 | |||
| Operating temperature | °C | 0~+70 | |||
| Storage temperature | °C | -40~+85 | |||
| Package(exclude boots) | mm | 40(L) x 28(W) x 6(H) | |||
