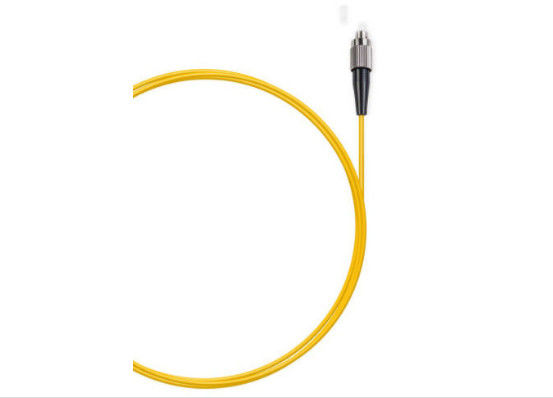

Single Mode 3.0mm Fiber Optic Pigtail Simplex Distribution FC / UPC Round Wire

: Large Image : Single Mode 3.0mm Fiber Optic Pigtail Simplex Distribution FC / UPC Round Wire

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Model Number:	FC/UPC Pigtail

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Product Name:	Fiber Optic Pigtail
Insertion Loss:	≤0.1dB (max≤0.3)	Length:	1m Or Customized
Wavelength:	1310/1550nm	Operating Temperature:	-40~75 ℃
Highlight:	single mode fiber pigtails , sc apc pigtail

Singlemode Simplex 3.0mm 3M 9 /125um Fiber Optic pigtail FC / UPC

Features

Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing

Applications

Telecommunication
Testing equipment
Long-haul telecommunication
LAN system
CATV systems

Specifications

Pigtail Connector	PC (SM)	UPC (SM)	APC (SM)	MM
Return Loss (dB)	≥45	≥50	≥60	≥35
Insertion Loss (dB)	≤0.1 (max≤0.3)
Repeatability (dB)	≤0.1
Durability(1/Matings)	≥500
Operation Temperature (°C)	-25~+70
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
diameter	0.9mm 2.0mm, 3.0mm etc
Cable material	PVC, LSZH
Cores	Simplex, Duplex
