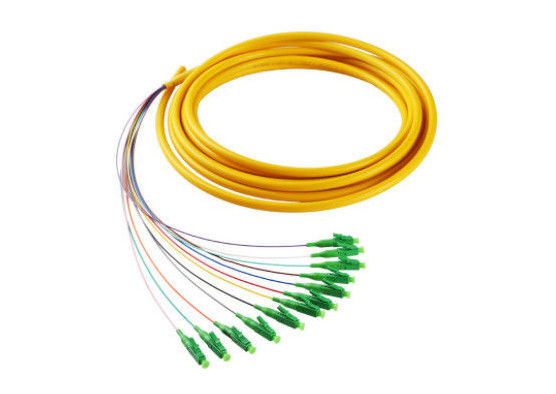

G652 FTTH Optical Pigtail , LC / APC Connector Type Single Mode Fiber Pigtails

Large Image : G652 FTTH Optical Pigtail , LC / APC Connector Type Single Mode Fiber Pigtails

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Model Number:	LC / APC 12 cores Pigtail

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE Bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Product Name:	Fiber Optic Pigtail
Insertion Loss:	≤0.20dB	Length:	1m Or Customized
Wavelength:	1310/1550nm	Jacket:	PVC/LSZH
Highlight:	single mode fiber pigtails , corning fiber pigtails

Single Mode 12 Cores LC / APC Pigtail Cables G652 Fiber Optic Pigtail

Features

PC/APC polishing
Low insertion and high return loss
Standard housing and metal ferrule
PVC or LSZH cable

Applications

Telecommunication networks
FTTH FTTX applications
Optical Switch Interframe Connection
Asynchronous Transmission Mode ( ATM)
Premise installations

Specifications

Content		Testing Condition	(dB)
			SM			MM
			APC	UPC	PC
Optical Performance	IL(dB)	1310/1550nm LD Light	0.2	0.2	0.2	0.2
	RL(dB)	1310/1550nm LD Light	65	55	50	35
Environment Performance	High Temperature	+85℃,168H	0.2
	Temperature cycle	-40~+75℃,21cycle,168H	0.2
	Humidity thermal(Fixed)	5℃,95%R.H.,168H	0.2
	Humidity thermal cycle	10~+65℃,95%R.H.,21 cycle,168H	0.2
Mechanical Performance	Vibration	10~55Hz,1.5mm(p-p)	0.1
	Bending	0.9kgf,-90°~+90°,100cycle	0.1
	Torsion	2.5kgf,10times/min,±180°,200times	0.1n
	Anti-tension	90N,10min	0.1
	Dropping	1.5 height, 8 times	0.2
	Repeat	10 Times inserts	0.1
	Durability	>1000times	0.2
