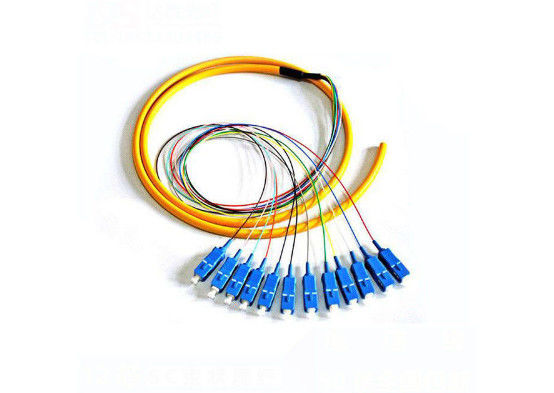

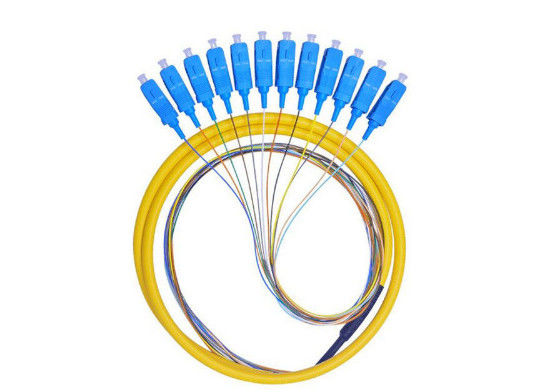

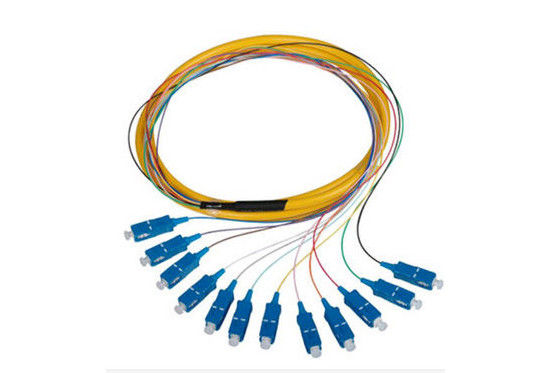

SC / UPC Fiber Optic Pigtail 1310 / 1550nm Wavelength For Local Area Network

Large Image : SC / UPC Fiber Optic Pigtail 1310 / 1550nm Wavelength For Local Area Network

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Model Number:	SC / UPC 12 cores Pigtail

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Product Name:	Fiber Optic Pigtail
Length:	1m Or Customized	Wavelength:	1310/1550nm
Operating Temperature:	-40~75 ℃	Insertion Loss:	≤0.20dB
Highlight:	corning fiber pigtails , sc apc pigtail

2.0mm 12 Core Bundle SC / UPC Singlemode Simplex Furrule Fiber Optic Pigtail

Features

Good interchangeability
100% optical detection
Good repeatability
Low insertion loss
High return loss
Easy to use

Applications

Data Communication Network
Gigabit Data Network Testing
Fiber Optic Data Transmission
Telecommunication Network
Active Device Termination
Local Area Network (LAN)

Specifications

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥60dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours
