Product Details:
Payment & Shipping Terms:
|
| Application: | FTTH FTTB FTTX Network | Product Name: | Fiber Optic Pigtail |
|---|---|---|---|
| Insertion Loss: | ≤0.20dB | Cable Length: | 1M; 2M; 3M; 4M Etc. |
| Operating Temperature: | -40~80 ℃ | Fiber Type: | G652D/G657A1/G657A2 Etc. |
| Highlight: | single mode fiber pigtails,sc apc pigtail |
||

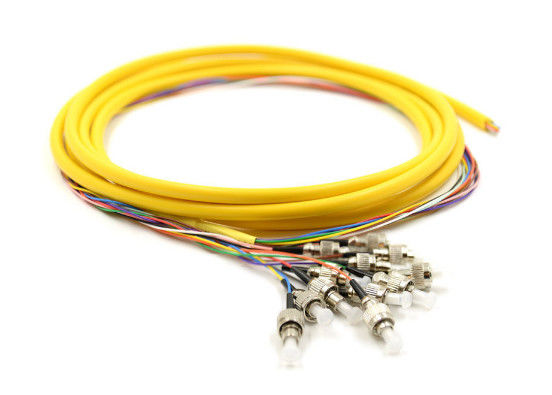

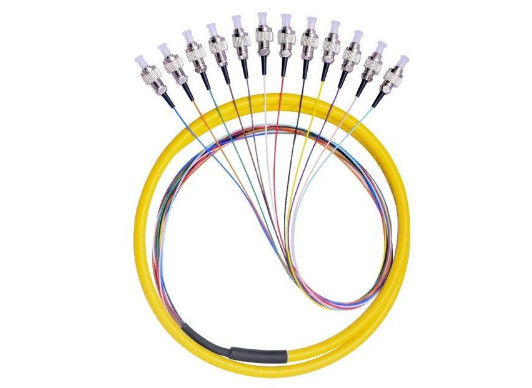

12 core FC / UPC Fiber Optic Singlemode fiber pigtail , 12 color Fan Out Fiber Pigtail with LSZH cable
Features
Applications
Specifications
| 12 Core Color Bundle Optical Pigtail Characteristic | Item | Test Conditions | Single mode | Multi-mode | |
| Fiber characteristics | Insertion loss | UPC | 1.31μm,LED(light source) | ≤0.4dB | ≤0.3dB |
| APC | 1.31μm,LED(light source) | ≤0.3dB | ≤0.3dB | ||
| Return loss | UPC | 1.31μm,LD(light source) | ≥55dB | ||
| APC | 1.31μm,LD(light source) | ≥65dB | |||
| Mechanical test (additional loss) | Impact test | 1.8,8(1.8 height, 8 times) | <0.1dB | <0.1dB | |
| Vibration test | 10~60Hz,1mm(Full amplitude) | <0.1dB | <0.1dB | ||
| Plug life | 1000 times or more | <0.1dB | <0.1dB | ||
| tensile strength | ≥100N | <0.1dB | <0.1dB | ||
| Environmental characteristics (additional loss) | High and low temperature cycling test | -25~+70℃,2(cycle) | <0.2dB | <0.2dB | |
| High temperature test | +80℃,2(hour) | <0.2dB | <0.2dB | ||
| Low temperature test | -40℃,2(hour) | <0.2dB | <0.2dB | ||
| Damp heat test | +40℃,90~95%RH,2(hours) | <0.2dB | <0.2dB | ||
