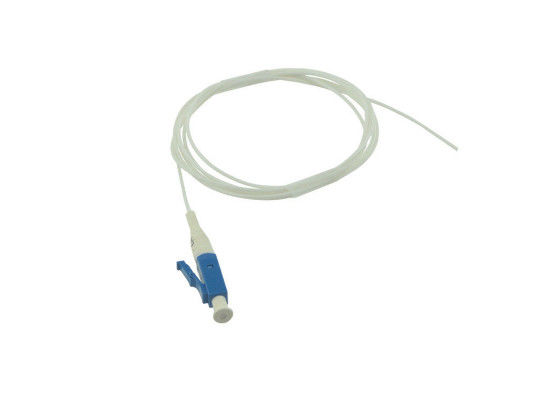

LC / PC UPC Fiber Optic Pigtail SX 9 / 125um PVC LSZH Cable Customized Length

: Large Image : LC / PC UPC Fiber Optic Pigtail SX 9 / 125um PVC LSZH Cable Customized Length

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Model Number:	LC/UPC SM Pigtail

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE Bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Product Name:	Fiber Optic Pigtail
Insertion Loss:	≤0.1dB	Length:	1m Or Customized
Return Loss:	>50dB	Jacket Material:	PVC.LSZH
Highlight:	single mode fiber pigtails , corning fiber pigtails

LC / PC UPC SingleMode SX fiber optic pigtail 9 / 125um PVC LSZH cable

Features

Low insertion loss and high return loss
Good repeatability & interchangeability
PC, UPC, APC polishing; FC, SC, ST, LC, MU connector

Applications

Optical fiber communications system
Optical fiber access networks
Optical fiber CATV
Optical fiber test equipments
Optical fiber data communication

Specifications

Fiber count	12	Fiber Mode	9/125μm
Connector Type1	SC/APC	Connector Type2	Unterminated
Fiber Mode	SM	Breakout length	0.5m
Wavelength	1310/1550nm	Jacket Material	PVC/LSZH
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥50dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Geometric Specification (only for 3D interferometer tested)
