APC PVC 0.9mm E2000 Pigtail , Telecommunication Sc Pigtail Single Mode

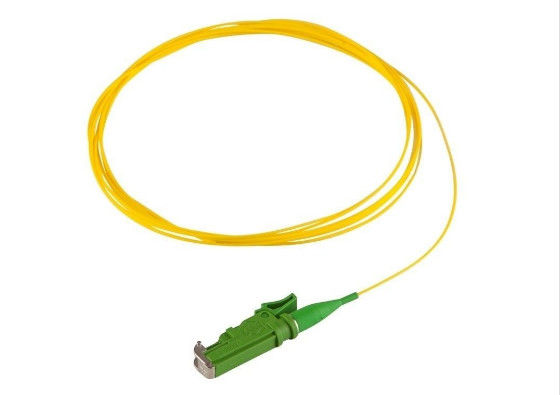

: Large Image : APC PVC 0.9mm E2000 Pigtail , Telecommunication Sc Pigtail Single Mode

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Model Number:	E2000/APC Pigtail

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Product Name:	Fiber Optic Pigtail
Jacket Material:	OFNP,PVC.LSZH	Operating Temperature:	-40~75 ℃
Durability:	≤0.2dB (1000 Times)	Insertion Loss:	≤0.20dB
Highlight:	single mode fiber pigtails , corning fiber pigtails

E2000 APC 9 / 125 Singlemode Simplex fiber optic pigtail PVC LSZH 0.9mm

Features

Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing

Applications

Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations.
Wide Area Networks(WANs)

Specifications

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Durability	≤0.2dB (1000 times)
Repeatability	≤0.1dB
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm
