Product Details:
Payment & Shipping Terms:
|
| Application: | FTTH FTTB FTTX Network | Product Name: | Fiber Optic Pigtail |
|---|---|---|---|
| Jacket: | PVC/LSZH | Cable Length: | 1M; 2M; 3M; 4M Etc. |
| Operating Temperature: | -40~80 ℃ | Return Loss: | PC>45dB,UPC>50dB,APC>60dB |
| Highlight: | single mode fiber pigtails,sc apc pigtail |
||

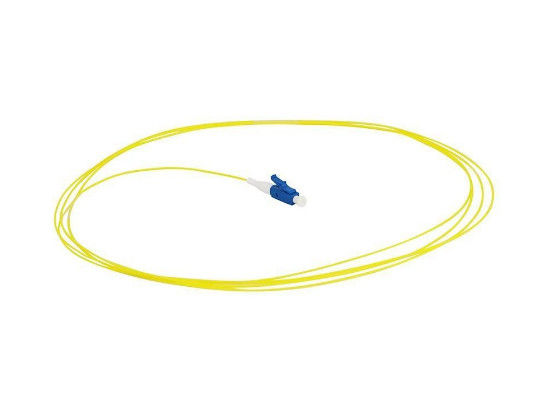

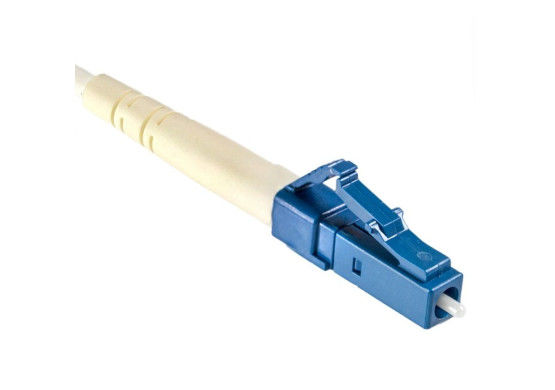

lc - lc / upc optic fiber jumper simplex / duplex lc single mode fiber patch cord
Features
Applications
Performance Index
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 |
||||
