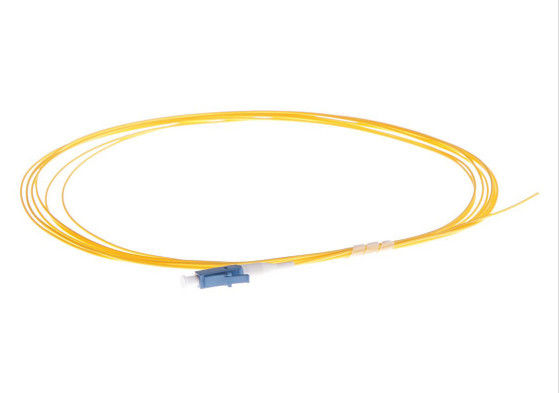

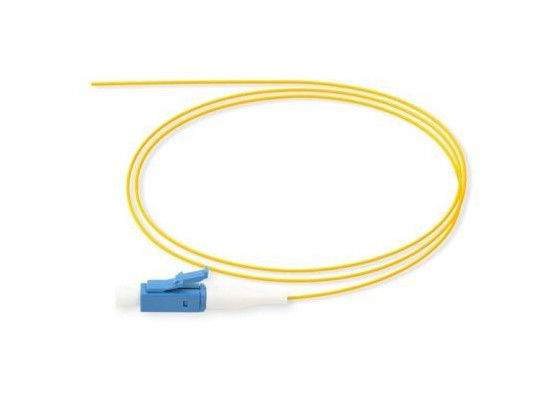

2.0mm Corning Fiber Pigtails , Single Mode Simplex Pigtail With LC Blue Connector

LC Single - Mode Simplex 2.0mm Corning Cable Fiber Optic Ribbon Pigtail

Features

• Good compatibility;
• High precision of mechanical dimensions;
• High reliability & stability;
• PC,SPC,UPC,APC optional,cable length optional;
• Single-mode cable:yellow, multi-mode cable:orange; optional available for other color

Applications

• Active device termination
• Local Area Networks (LANs)
• Data processing networks
• Test equipment
• Premise installations
• Wide Area Networks (WANs)

Specifications ​

• Insertion loss:≤0.2dB
• Return loss:≥50dB(PC)
• Repeatable:0.1dB(1000)
• Temperature range:-40°~75ºC
• Simplex/Duplex patch-cord available
• Fan-out available;
• Pigtail available;
• Various boot (cable) sizes available.

Connector type:FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4,SMA;

Ferrule End-face:PC,SPC,UPC,APC;

Core type:Single-mode(SM:9/125um),multi-mode(MM:50/125um or 62.5/125um);

Cable quantity:"1C"means one cores=simplex(SX)

Cable Diameter:3.0mm,2.4mm,2.0mm,1.8mm,1.6mm,0.9mm or customized;

Cable length:1,2,3meter or customized;

Cable type:PVC,LSZH,OM3,OFNR,OFNP.
