| Application: | FTTH FTTB FTTX Network | Product Name: | Fiber Optic Pigtail |
|---|---|---|---|
| Jacket Material: | PVC.LSZH | Insertion Loss: | ≤0.3dB |
| Cable Length: | 1M; 2M; 3M; 4M Etc. | Operating Temperature: | -40~75 ℃ |
| Highlight: | single mode fiber pigtails,corning fiber pigtails |
||

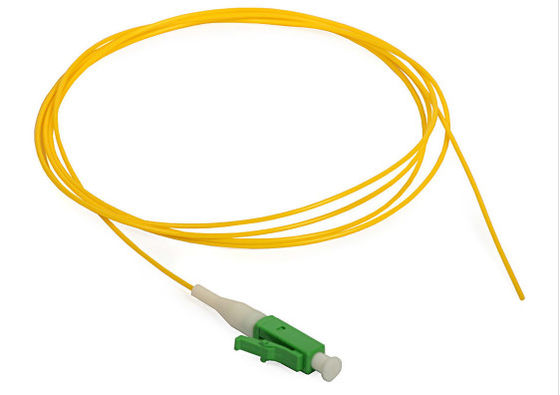

LC APC Singlemode simplex 9 / 125 PVC LSZH Fiber Optic Pigtail
Features
Specifications
| Connector Type | SC, LC, FC, ST, MU |
| Fiber Type | G652D, G657A, OM1, OM2, OM3, OM4 |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Jacket Material | PVC or LSZH |
| Cable Diameter | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm |
| Jacket Color (Multimode: OM1 & OM2) | Orange |
| Jacket Color (Multimode: OM3) | Aqua |
| Jacket Color (Multimode: OM4) | Aqua or Purple |
| Jacket Color (SingleMode: G652D & Gb57A) | Yellow |
| Insertion Loss (dB) Max. | ≤0.3 |
| Return Loss (dB) Singlemode | PC≥45, UPC≥50, APC≥60 |
| Return Loss (dB) Multimode | PC≥35dB |
| Note:Other Jacket colors may be available upon request. | |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: PT-AA-BCDE
Ordering Guide
| AA | B | C | D | E |
| connector Type | Fiber Type | Length | Jacket Material | Jacket Color(CL) |
| FP,SP,SA,LP | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A |
01=1M 02=2M 03=3M 10=10M |
1=PVC 2=LSZH |
Yellow=YE Orange=OR Aqua=AQ Purple=PU |
Ordering Sample
| Part Number | Description |
| PT-SP-OM1-031OR | SC/PC Multimode 62.5/125 Fiber Optic Pigtail, PVC Jacket, Orange, 3M. |
