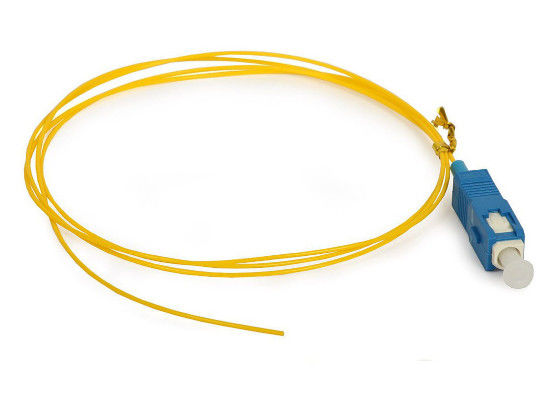

SC / UPC Fiber Optic Pigtail Simplex 0.9MM Cable Diameter Low Back Reflection Loss

: Large Image : SC / UPC Fiber Optic Pigtail Simplex 0.9MM Cable Diameter Low Back Reflection Loss

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2008,ROHS
Model Number:	SC SM SX 0.9mm

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	PE Bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application:	FTTH FTTB FTTX Network	Product Name:	Fiber Optic Pigtail
Cable Diameter:	0.9/2.0/3.0mm	Fiber Type:	G652D/G657A1/G657A2 Etc.
Repeatability:	≤0.1dB (1000 Times)	Operating Temperature:	-40~85 ℃
Highlight:	corning fiber pigtails , sc apc pigtail

Fiber optic equipment manufacturer SM Simplex 0.9MM SC fiber optic pigtail

Features

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Excellent mechanical endurance
Good in repeatability
Good in exchange
Green Production, CE, RoHS Standard

Applications

Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Medical

Specifications

Mode	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	≥55dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Salt Spray	≤0.1dB
Repeatability	≤0.1dB (1000 times)
Vibration	≤0.2dB (550Hz 1.5mm)
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset	0μm ~ 50μm
Radius of Curvature	7mm ~ 25mm
Standards-Compliant	ROHS,IEC and GR-326

Fiber cable performance specifications
Fiber type	Min.Bandwidth	Distance	attenuation
62.5/125	850/1300nm 200/500 MHz/Km	@100Mbps 2km @1Gig 220m	850/1300nm 3.0/1.0dB/km
50/125	850/1300nm 500/500 MHz/Km	@100Mbps 2km @1Gig 500m	850/1300nm 3.0/1.0dB/km
50/125 10Gig Optimized	850/1300nm 2000/500 MHz/Km	@100Gig Varies by VCSEL typical 300m 2850nm	850/1300nm 3.0/1.0dB/km
9/125	1310/1550nm Approx 100 Terahertz	Up to 100km Varies by transceiver	1310/1550nm 0.4/0.3dB/km
