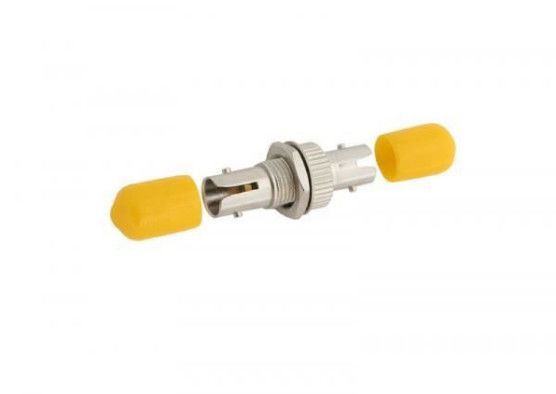

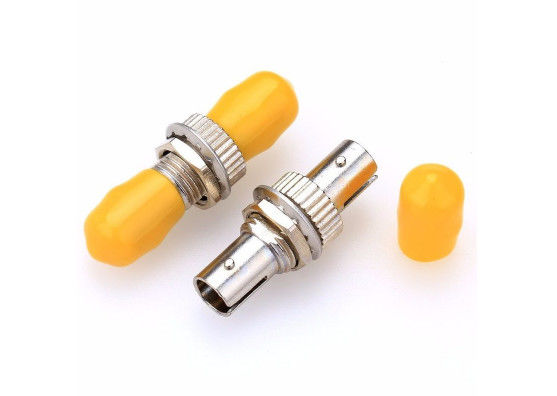

Yellow Simplex ST To ST Fiber Optic Adapter Metal Materials For Ftth Network

Large Image : Yellow Simplex ST To ST Fiber Optic Adapter Metal Materials For Ftth Network

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2008, SGS, ROSH
Model Number:	ST SX Adapter

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	Plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Adapter	Application:	FTTH FTTB FTTX Network
Type:	Single Mode/ Multi-mode	Insertion Loss:	Typical≤0.15dB,Max≤0.20dB
Durability:	≤0.20dB Max Change,1000 Mating	Housing Material:	Metal Or Plastic Housing
Highlight:	fiber optic cable adapter , optical digital audio cable adapter

Yellow St to St Simplex Metal Fiber Optic Adapter Coupler

Features

Low insertion loss value
High back reflection loss value
Stable capability and high reliability
Precis connector
Excellent mechanical capability
Boots in a variety of colors

Applications

Telecom network
Optical test equipment
Local area networks
Wide area networks
Data processing Networks

Specifications

ITEM	PARAMETER
Applicative adapter type	SC,LC,FC,ST,MU,D4,DIN
Fiber mode	Single mode	Multi-mode
Adapter color	Blue, green, metal	Beige, metal
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.15dB,Max≤0.20dB	typical≤0.15dB,Max≤0.20dB
Repeatability	≤0.10dB
Interchangeability	≤0.20dB
Durability	≤0.20dB Max change,1000 mating
Channels	Simplex,Duplex,4channels
Body material	Plastic or metal
Sleeve material	Ceramic(ZrO2)
Operating Temperature	-20ºC to +70ºC
Storage Temperature	-40ºC to +85ºC
