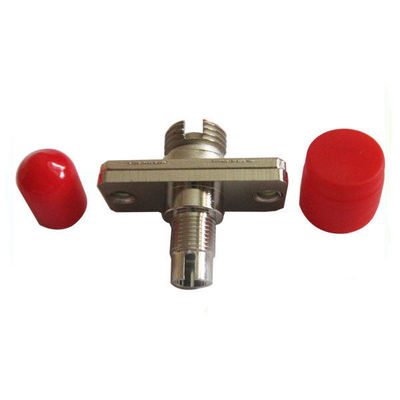

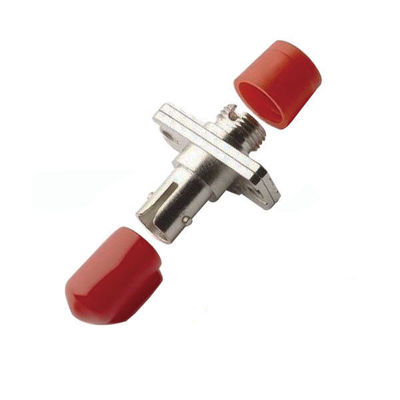

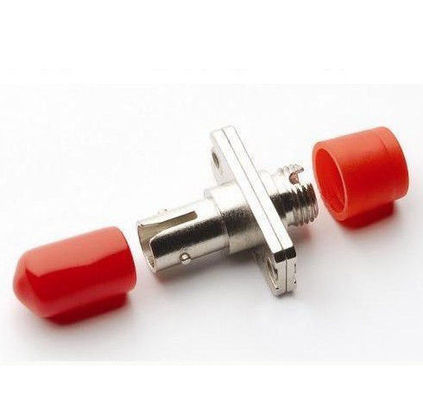

High Intensity / Stability Fiber Optic Adapter ST To FC Rohs Listed Durable

Large Image : High Intensity / Stability Fiber Optic Adapter ST To FC Rohs Listed Durable

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2015 , RoHS
Model Number:	ST/FC

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Adapter	Insertion Loss:	≤0.2dB，≤0.3dB
Application:	FTTH FTTB FTTX Network	Operating Temperature:	-40℃ To 75℃
Durability:	>1000time	Storage Temperature:	- 45~+85℃
Highlight:	fiber optic cable adapter , optical digital audio cable adapter

Application:

Local Area Network
CATV System
Telecommunication Networks
Equipment Test

Introduction:
Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.

Features:

Low insertion loss;
Good repeatability and interchangeability;
Good environmental stability.

Specification:

rameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	＞1000				＞1000			＞1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85
