Green SC / APC Fiber Optic Adapter With Metal Shutter Low Insertion Loss

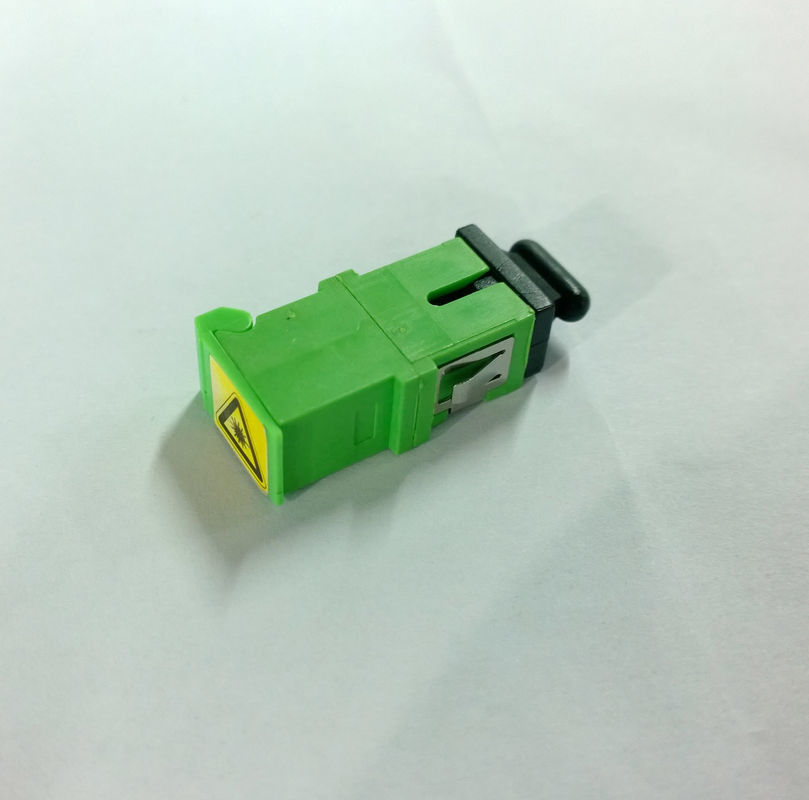

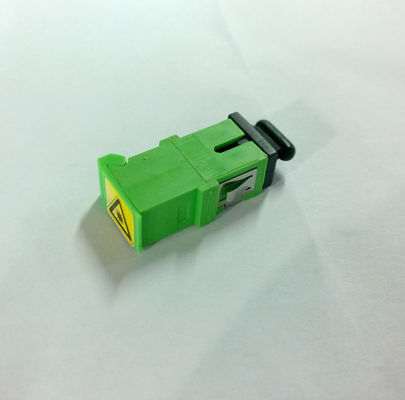

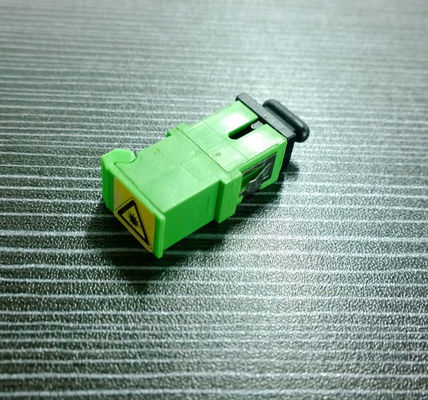

Large Image : Green SC / APC Fiber Optic Adapter With Metal Shutter Low Insertion Loss

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2015 , RoHS
Model Number:	SC/APC SX

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Adapter	Insertion Loss:	≤0.2dB，≤0.3dB
Application:	FTTH FTTB FTTX Network	Operating Temperature:	-40℃ To 75℃
Durability:	>1000time	Storage Temperature:	- 45~+85℃
Highlight:	optical digital audio cable adapter , fiber optic connector adapters

Green color SC / APC Simplex optic fiber adapter Low insertion loss

Description:
Fiber optic SC adapter with metal shutter, available in both simplex and duplex version. Blue, green, beige, aqua color available for SM/PC, SM/APC, MM/PC and OM3 type.
♦ Features:

Low insertion loss
Good repeatability and interchangeability
Good environmental stability

♦ Technical Specification:

rameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	＞1000				＞1000			＞1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85
