Rectangle FC APC Fiber Optic Adapter High Accurate Dimension 0.1dB Durability

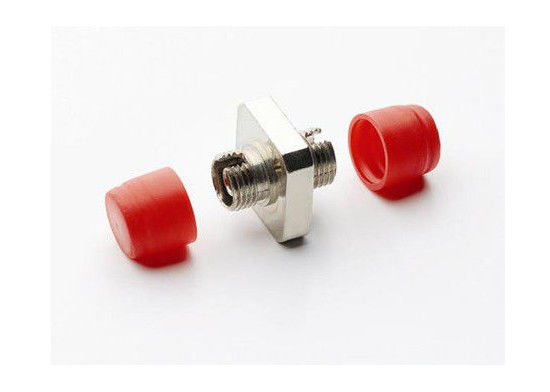

Large Image : Rectangle FC APC Fiber Optic Adapter High Accurate Dimension 0.1dB Durability

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS9001:2008, Rohs
Model Number:	FC/APC SM Adapter

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	Plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Adapter	Insertion Loss:	IL<0.2db
Return Loss:	>45dB For SM; >35dB For MM	Durability:	0.1dB
Working Temperature:	-25°C~70°C	Operating Temp:	-40~85°C
Highlight:	optical digital audio cable adapter , fiber optic connector adapters

Rectangle Simplex Duplex FC APC Singlemode Square Solid Type Adapter

Product Description

Different adapters are available. Compartmentalized carrying case keeps all your couplers in one place for easy access.
Low insertion and high return loss.
Excellent repeatability and change ability.
Simplex and deplex available.

Features

Increase panel density and quick plug in installation
Available in several standard colors
Meet bellcore GR-326 standard
Insertion loss: SM<0.3dB, MM<0.5dB
Durability (500 Mating): 0.2dB Max Increase
Operating temperature: -40°C~85°C
High accurate dimension
Good inter change ability, repeatablity and resistance

Applications

Suitable for high power laser applications;
Telecommunications networks;
WDM, DWDM applications;
Testing and measuremebt equipment.

Item Details

Connector Type	FC-FC
Polish Type	PC
Fiber Counts	1 Cores
Fiber Mode	Multimode
Insertion Loss	0.2dB
Durability	0.1dB
Flammability Rate	UL94-V0
Working Temperature	-25°C~70°C
