Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic Adapter | Type: | Single Mode/ Multi-mode |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Insertion Loss: | SM<0.2dB,MM<0.3dB |
| Operating Temperature: | -40℃ To 85℃ | Storage Temperature: | - 55~+85℃ |
| Highlight: | optical digital audio cable adapter,fiber optic connector adapters |
||

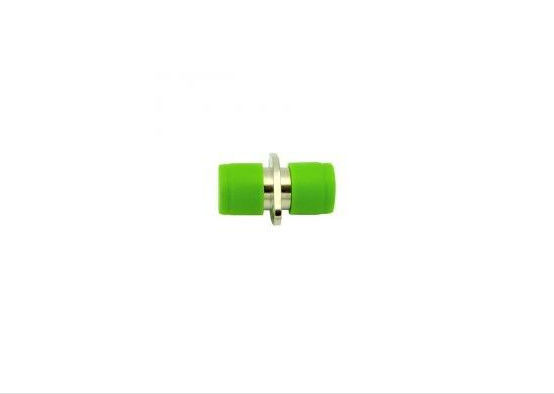

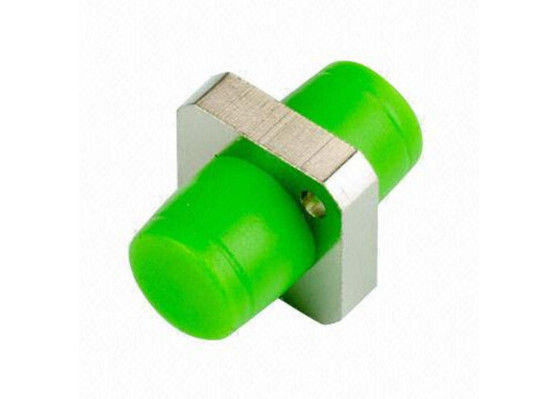

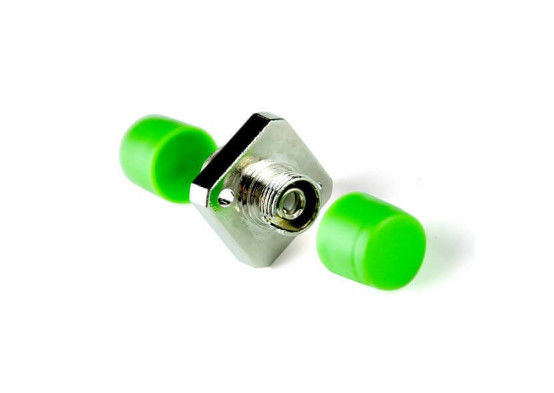

Single mode FC APC Fiber Optic Solid Square Type Adapter
Fiber Optic adapters have been designed to be compact and flexible making it suitable for the interconnection between optical fiber in optical patching panels. With dust protection caps included, the combination of a unique ferrule polishing and a precision metal or plastic housing provides a consistent mechanical and optical performance.
Features
Applications
Specifications
| Description | Unit | Values | |
| Insertion Loss (IL) | dB | SM | <0.2 |
| dB | MM | <0.3 | |
| Exchangeability | dB | <0.2 | |
| Repeatability (500 remates) | dB | ≤0.2 | |
| Operating Temperature | °C | - 40 to + 85 | |
| Storage Temperature | °C | - 55 to + 85 | |
