Square UPC To Apc Adapter / Extender Red Cap For Engineering Recovery

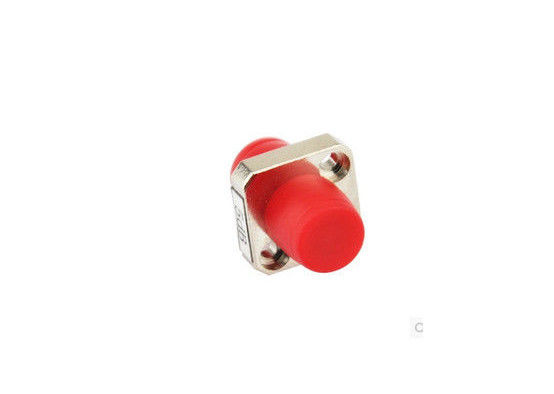

Large Image : Square UPC To Apc Adapter / Extender Red Cap For Engineering Recovery

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	IS9001:2008, Rohs
Model Number:	UPC SX Adapter

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Negotiation
Packaging Details:	Plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Adapter	Application:	FTTH FTTB FTTX Network
Type:	Single Mode/ Multi-mode	Repeatability:	<0.1dB
Operating Temp:	-40 To +85℃	Durability:	< 0.2db Typical Change
Highlight:	fiber optic cable adapter , fiber optic connector adapters

Fiber Optic Adapter Single Mode UPC Simplex Fiber Optic Extender / Fiber Couplers Series

Features

High Reliability and Stability
Zirconia or Phosphor Bronze Sleeve
Single mode, Multi-mode Versions
Various Types of Connectors FC,SC,ST,MU,LC,MTRJ,MPO
Low Splicing Loss

Applications

Telecommunication Network
Testing Equipment
Local Area Network(LAN)
Engineering Recovery
FTTH
Connect Different Types of Ceramic Ferrule Bores

Order Information

Common Adapters
Connector Type	Ceramic Ferrule Bore End Face	Single mode/Multi-mode	Remark
FC	PC/UPC/APC	SM/MM	Round, Square, Split Square, Rectangular
SC	PC/UPC/APC	SM/MM
ST	PC/UPC	SM/MM
LC, MU	PC/UPC	SM/MM	Double
MTRJ	PC/UPC	SM/MM
Hybrid Adapters
Connector Type	Ceramic Ferrule Bore End Face	Single mode/Multi-mode	Remark
FC-SC	PC/UPC/APC	SM/MM
FC-ST	PC/UPC/APC	SM/MM
FC-LC	PC/UPC	SM/MM
SC-ST	PC/UPC	SM/MM
SC-LC	PC/UPC	SM/MM
FC-MU	PC/UPC	SM/MM
