Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic Adapter | Type: | Single Mode/ Multi-mode |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Durability: | >500 Mating Times |
| Operating Temperature: | -40~+75℃ | Storage Temperature: | - 45~+85℃ |
| Highlight: | fiber optic cable adapter,optical digital audio cable adapter |
||

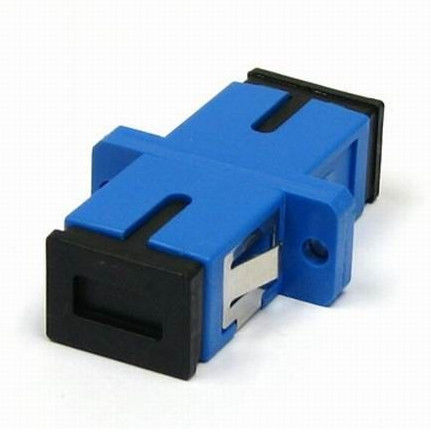

SC / UPC Single Mode Simplex Adapter Blue Color for Fiber Optic Using
Features
Applications
Specifications
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 | ||||||
| SM | MM | SM | MM | SM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Durability | Time | >1000 | >1000 | >1000 | ||||||
| Operating Temperature | °C | -40~75 | -40~75 | -40~75 | ||||||
| Storage Temperature | °C | -45~85 | -45~85 | -45~85 | ||||||
