Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic Adapter | Type: | Simplex/Duplex |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Insertion Loss: | ≤0.2dB |
| Return Loss: | >50db | Operating Temperature: | -40℃ To 85℃ |
| Highlight: | optical digital audio cable adapter,fiber optic connector adapters |
||

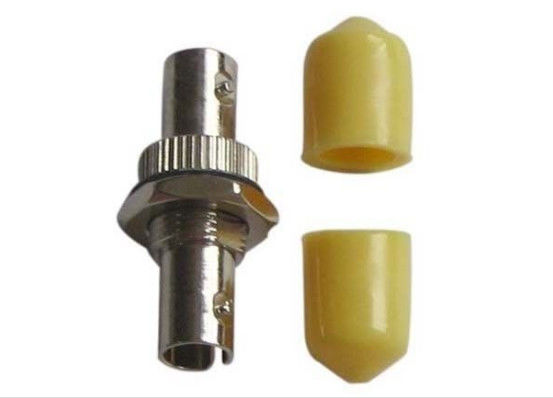

Fiber Optic Adapter St Upc / APC/PC Sm mm Simplex Duplex
Mating sleeve fiber optic adapters allow users to couple from one connector type to another same type. These adapters are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. These adapters are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Features
Applications
Specifications
| Polish Type | Unit | PC |
| Nominal fiber O/D | um | 125±2 |
| Insertion Loss | dB | ≤0.20 |
| Return Loss | dB | ≥50 |
| Mating Durability (500Cycles) | ≤0.20dB | |
| Temperature Stability | ≤0.30dB | |
| Operating Temperature | -40 ~ 85ºC | |
