1 X 64 Digital Optical Splitter , Passive Fiber Optic Splitter With 900μM SC APC Connector

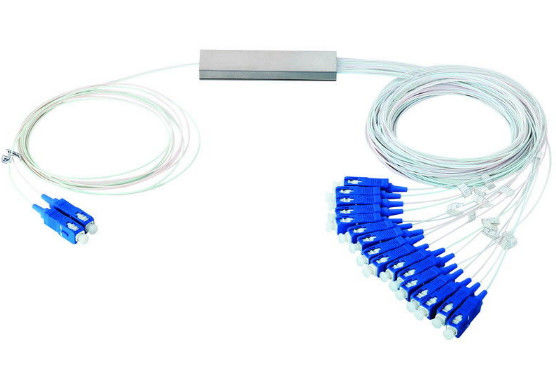

Large Image : 1 X 64 Digital Optical Splitter , Passive Fiber Optic Splitter With 900μM SC APC Connector

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	RoHS, ISO9001:2000
Model Number:	SC/APC connector PLC Splitter,SM

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Plastic Box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Connector Type:	SC/APC	Product Name:	Fiber Optic PLC Splitter
Material Shape::	Round Wire	Operator Temperature:	-40~85℃
Fiber Length:	≥2m	Fiber Type:	G657
Highlight:	fiber optic cable splitter , active optical splitter

1×64 Blockless mini Steel tube type Fiber Optic PLC Splitter, Singlemode, 900μm sc apc connector

Features

Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:From 1260nm to 1650nm
Wide Operating Temperature: From -40°C to 85°C
High Reliability and Stability

Applications

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

Specifications

Parameters	2×2	2×4	2×8	2×16	2×32
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.2	7.6	11.0	14.5	17.5
Loss Uniformity (dB)	0.8	1.5	1.5	2.0	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.5	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Packaging Dimension (mm) (L×W×H)	40×4×4	40×4×4	50×4×4	50×7×4	60×7×4
