Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic PLC Splitter | Application: | FTTH FTTB FTTX PON CATV |
|---|---|---|---|
| Operating Temperature: | -20℃ To 70℃ | Wavelength: | 1310nm/1550nm |
| Directivity: | ≥60dB | Fiber Length: | 1m,Customized |
| Highlight: | active optical splitter,fiber optic coupler splitter |
||

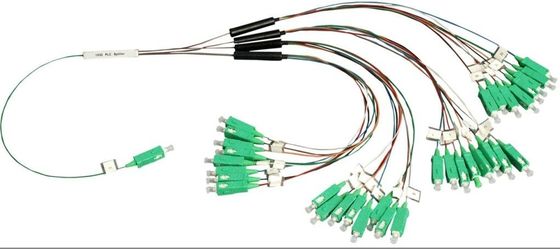

Single Mode and Multi Mode 1×32 PLC Fiber Optic Splitter for System and Signal Monitoring
Optical coupler is an optical device that combines or splits power from optical fibers.
Optical splitter divides light from a single fiber into two or more fiber channels.
Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available
Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting
Specification:
| Parameter | Configuration | |||
| N x 4(N=1, 2, 16) | N x 8 (N=1, 2, 8) | N x 16 (N=1, 2, 16) | N x 32 (N=1, 2, 32) | |
| Operate Wavelength(nm) | 1310/1550, or customized | |||
| Bandwidth(nm) | ±20 | |||
| Max.Excess Loss(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
| Typ.Insertion Loss(dB) | 6.2 | 9.3 | 12.4 | 15.5 |
| Max.Insertion Loss(dB) | 6.8 | 10.2 | 13.6 | 17 |
| Uniformity(dB) | 1.2 | 1.8 | 2.4 | 3 |
| PDL(dB) | 0.08 | 0.12 | 0.16 | 0.2 |
| Thermal Stability(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
| Directivity(dB) | ≥60 | |||
| Operate Temperature(℃) | -20～+70 | |||
| Lead Length(m) | 1 or customized | |||
| Lead Type(mm) | φ3.0, φ2.0, φ0.9 | |||
| Package Dimension | A:φ3.0, L=50 | B:89*19*8 | C:99*79*9 | D:140*114*18 |
|
(mm, L*W*H) |
||||
