Single Mode Fiber Optic PLC Splitter 1 * 2 0.9mm Fiber Length Low Insertion Loss

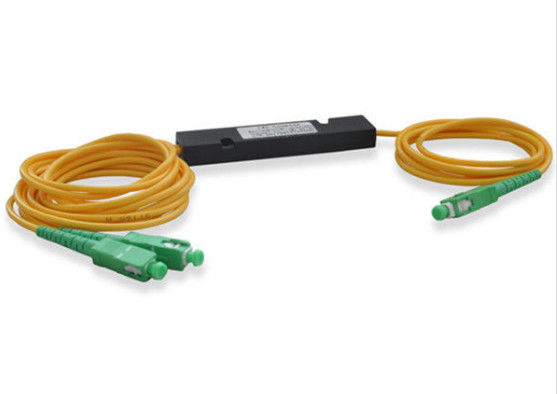

: Large Image : Single Mode Fiber Optic PLC Splitter 1 * 2 0.9mm Fiber Length Low Insertion Loss

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	Rohs CE ISO9001:2008
Model Number:	SC / APC Optical PLC 1x2 fiber spliter

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Price:	Negotiation
Packaging Details:	Plastic Box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic PLC Splitter	Operator Temperature:	-40~+80℃
Return Loss:	≥50 DB	Insertion Loss:	≤0.1dB
Connector Type:	SC/APC/UPC	Fiber Type:	G.657A With 0.9mm Lose Tube
Highlight:	fiber optic cable splitter , active optical splitter

SC APC / UPC 1*2 mini type 0.9mm fiber optic plc splitter

Features

Telcordia GR-326, IEC, TIA/EIA Standard compliant.
100% Optical performance inspection.
Low Insertion Loss.
RoHS Compliance.
Customized design and production.

Applications

Network Protection
Monitorin
Access/PON distribution

Specifications

Parameters	1x4	1x8	1x16	1x32	1x64	2x4	2x8	2x16	2x32
Operating wavelength(nm)	1200~1650
Insertion Loss (db).Max	7.2/7.4	10.5/10.7	13.5/13.7	16.5/16.9	20.5/21	7.5/7.8	11.2/11.5	14.2/14.5	17.4/17.7
Loss Uniformity (db).Max	0.6	0.8	1.2	1.5	2.5	1.5	1.5	2.0	2.5
PDL (db).Max	0.2	0.3	0.3	0.3	0.4	0.2	0.4	0.4	0.4
Return Loss (db)	≥50
Directivity (db)	≥55
Fiber Length(m)	1.2(±0.1),Specify
Fiber Type	Corning SMF-28e, Specify
Operation Temperature℃	-40~+85
