Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic PLC Splitter | Connector Type: | LC/APC |
|---|---|---|---|
| Wavelength: | 1260-1650nm | Material: | ABS |
| Optical PLC Splitter Cable OD:: | 2.0mm | Splitter Ratio:: | 1×16 |
| Highlight: | fiber optic cable splitter,active optical splitter |
||

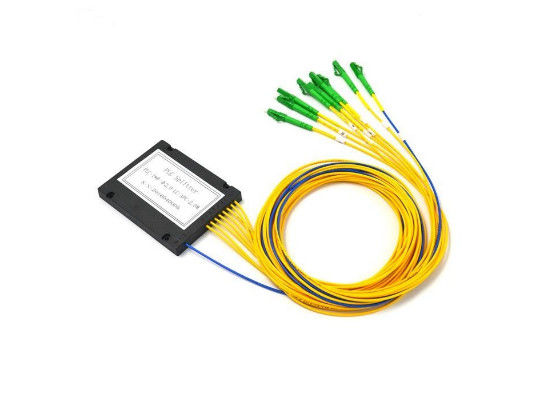

1*16 ABS PLC Splitter / Fiber Optic LC / APC PLC spliter / Planar Lightwave Circuit Splitter
Features
Applications
Specifications
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Fiber Type | SMF-28e or customer specified | |||||
| Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40~85 | |||||
| Storage Temperature (°C) | -40~85 | |||||
| Packaging Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
Services
1, We provide professional offer. Provide detailed products test report and related specifications;
2, We provide professional technology support to meet the requirements of customers;
3, Within 12 hours of the corresponding customer inquiry,we will promptly get in touch with customers;
4, We supply samples;
5, We supply ODM/OEM products;
