Lc / Upc Fiber Optic PLC Splitter 1 X 16 PVC Jacket 1260 - 1650nm Wavelength

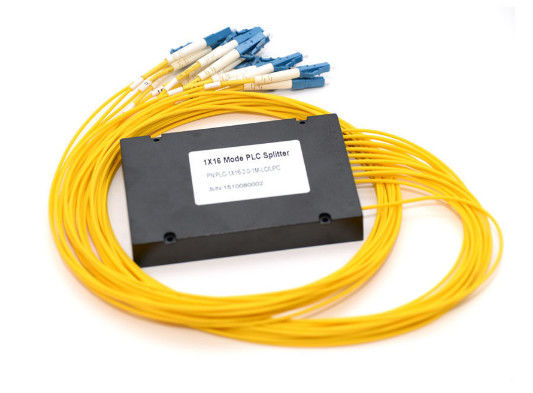

: Large Image : Lc / Upc Fiber Optic PLC Splitter 1 X 16 PVC Jacket 1260 - 1650nm Wavelength

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	Rohs CE ISO9001:2008
Model Number:	LC/UPC PLC fiber spliter

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic PLC Splitter	Type:	1x16/1x32
Application:	FTTH System	Wavelength:	1260-1650nm
Material:	ABS Box	Item:	High Quality Plc Splitters
Highlight:	fiber optic cable splitter , active optical splitter

ABS Box Type Lc / Upc PLC Fiber Spliter 1x16 Optical Splitter PVC Jacket

wholesale abs box type 1X32 lc / upc plc fiber spliter

Features

Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
Wide Operating Temperature: From -40° C to 85° C
High Reliability and Stability

Applications

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

Specifications

PLC Splitter 1× N, 2XN PLC Splitter

Parameters	1× 2	2× 2	1× 4	2× 4	1× 8	2× 8	1× 16	2× 16	1× 32	2× 32	1× 64	2× 64
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/ 4.0	4.0/ 4.2	7.1/ 7.3	7.6/ 7.6	10.2/ 10.5	11.0/ 11.2	13.5/ 13.7	14.4/ 14.6	16.5/ 16.9	17.5/ 17.9	20.5/ 21.0	21.0/ 21.5
Loss Uniformity (dB)	0.4	0.6	0.6	1.0	0.8	1.2	1.2	1.5	1.5	2.0	2.0	2.2
Return Loss (dB) (P/S Grade)	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.2	0.2	0.3	0.25	0.3	0.3	0.4	0.35	0.4
Directivity(dB)	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.4	0.3	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Temperature Stability (-40~85° C)(dB)	0.4	0.4	0.4	0.4	0.4	0.4	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature(° C)	-40~85
Storage Temperature(° C)	-40~85
Device Dimension (mm)(L× W× H)	40× 4× 4	40× 4× 4	50× 4× 4	40× 4× 4	50× 4× 4	50× 7× 4				60× 7× 4	60× 12× 4
