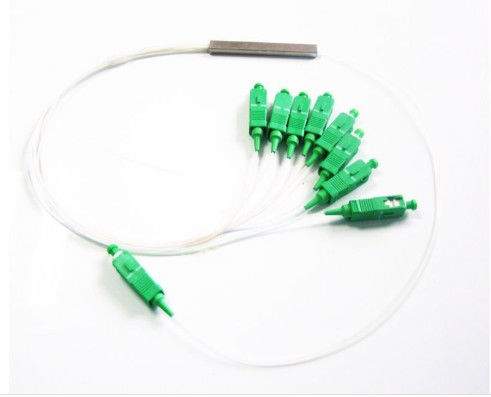

High Reliability Mini Single Mode Fiber Splitter , G657A Fiber 1x8 Optical Splitter

: Large Image : High Reliability Mini Single Mode Fiber Splitter , G657A Fiber 1x8 Optical Splitter

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	RoHS, ISO9001:2000

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic PLC Splitter	Type:	SM Or MM
Fiber Type:	G657A	Wavelength:	1260-1650nm
Cable Diameter::	900um	Item:	High Quality Plc Splitter
Highlight:	fiber optic cable splitter , fiber optic coupler splitter

Free Sample for test, 1x8 Mini PLC optic fiber Splitter, FTTH splitter / coupler

Features

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Good delivery time 5-7days
Good product capacity: 20000pcs connector each day

Applications

FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems

Specifications

Product Model	1×2	1×4	1×8	1×16	1×32	1×64	2×2	2×4	2×8	2×16	2×32
Wavelength	1206-1650nm
Insertion loss(db)	3.6	7.2	10.2	13.5	16.2	20.5	3.8	7.5	10.7	14	17
Uniformity(db)	0.4	0.6	0.8	1	1.2	1.8	0.6	1	1.2	1.5	1.8
PDL(db)	0.2	0.2	0.3	0.3	0.3	0.4	0.2	0.2	0.3	0.3	0.3
Directivity(db)	55
Reflection loss(db)	55
Operating temperature	-40~85℃
