Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic PLC Splitter | Fiber Type: | G657A |
|---|---|---|---|
| Wavelength: | 1260-1650nm | Operator Temperature: | -40~+85℃ |
| Application: | FTTH FTTB FTTX PON CATV | Item: | High Quality Plc Splitters |
| Highlight: | fiber optic cable splitter,active optical splitter |
||

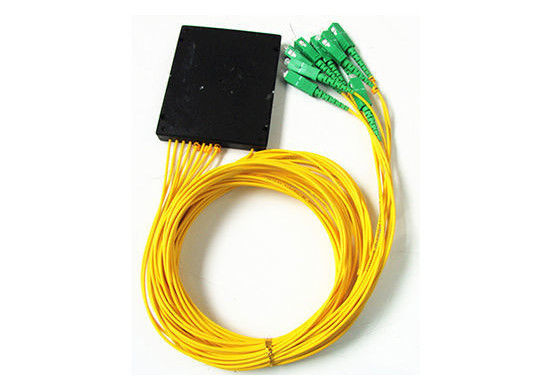

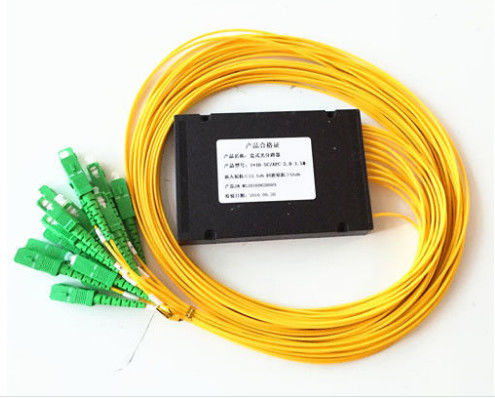

1*16 PLC Splitter for FTTH Fiber Optic with SC / APC Connector in ABS Box
Features
Applications
Specifications
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Fiber Type | SMF28-e or customer specified | ||||||
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.7 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max | 4.0 | 7.2 | 10.5 | 13.5 | 16.9 | 21.0 | |
| Loss Uniformity(dB) | Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) | Min | 50 | 50 | 50 | 50 | 50 | 50 |
| Polarization Dependent Loss(dB) | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
| Temperature Stability (-40~85 ºC)(dB) |
Max | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
| Operating Temperature (ºC) | -40~85 | ||||||
| Storage Temperature (ºC) | -40~85 | ||||||
| Package Size (mm) | 40x4x4 | 50x4x4 | 50x7x4 | 60x12x4 | |||
Note: All the data above does not include connectors.
Add an additional 0.2dB loss per connector.
