Bare Fiber Optic Coupler Splitter , PLC Optical Cord Splitter For Local Area Networks

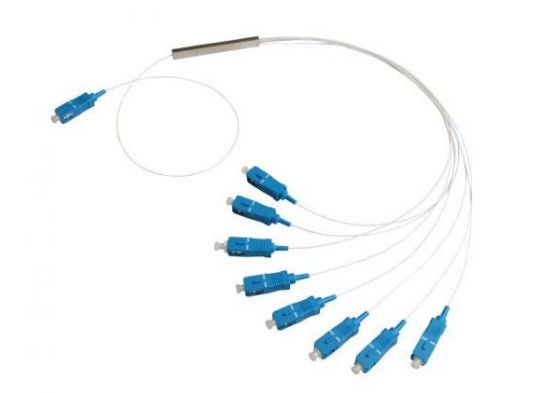

: Large Image : Bare Fiber Optic Coupler Splitter , PLC Optical Cord Splitter For Local Area Networks

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	RoHS, ISO9001:2000
Model Number:	Fiber Optic 1X8 PLC Splitter

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	PE bag
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic PLC Splitter	Application:	FTTH FTTB FTTX PON CATV
Fiber Type:	G657A	Operating Temperature:	-40℃ To 85℃
Wavelength:	1260-1650nm	Item:	High Quality Plc Splitters
Highlight:	fiber optic cable splitter , active optical splitter

Bare Fiber PLC Fiber Optic 1X8 PLC Splitter / Planar Lightwave Circuit Splitter

Description

Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel to channel niformity, and is widely used in PON(EPON/GPON) networks to realize optical signal power splitting.

We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All PLC Splitter products meet GR-1209-CORE and GR-1221-CORE requirements.

Features

Fiber to The Point (FTTX)
Fiber to The Home (FTTH)
Passive optical networks(PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment

Applications

FTTX Systems
LAN, WAN and metro networks
Analog/Digital passive optical networks
CATV networks
Other applications in fiber optic systems

Specifications

Type	PLC
Input Form	1 = 1 channel, 2 = 2 Channels
Enter the fiber type	B = 250um Bare Fiber, L = 900um Loose Tube
Enter the length of the fiber	1.2M, 1.5M according to customer requirements
Output Form	04 = 4Channels, 08 = Channels, 16/32/62 ~~~~~
Output Fiber Type	B = 250um Bare Fiber, L = 900um Loose Tube
Output Fiber Length	1.2M, 1.5M according to customer requirements
Connector Type	SC / FC / ST / LC / MU / SMA (PC / APC) OR NONE
