Product Details:
Payment & Shipping Terms:
|

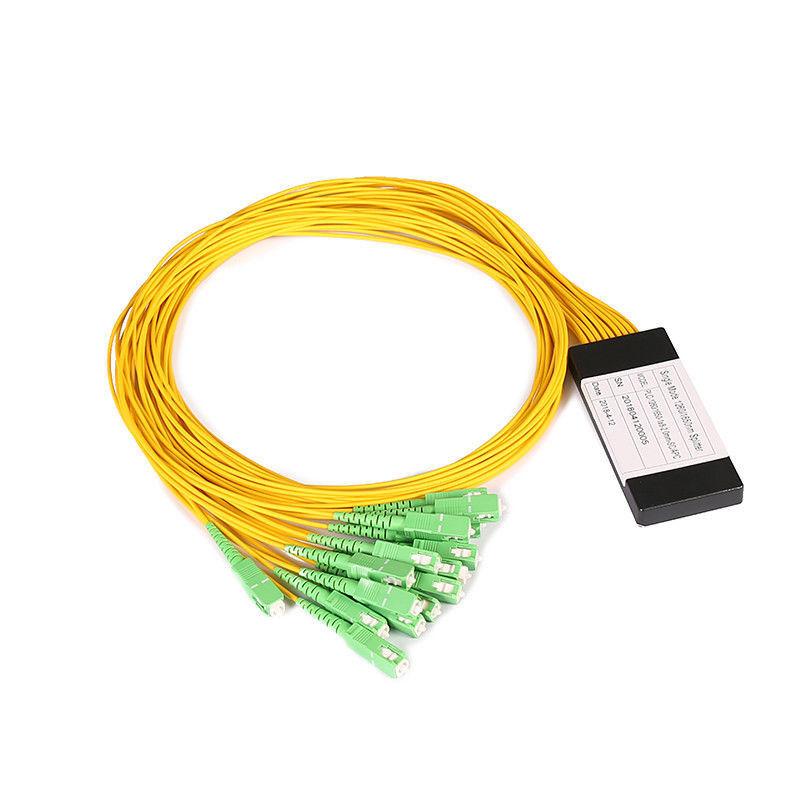

| Product Name: | Fiber Optic PLC Splitter | Application: | FTTH FTTB FTTX PON CATV |
|---|---|---|---|
| Fiber Type: | G657A | Operating Temperature: | -40~+85℃ |
| Wavelength: | 1310nm/1550nm | Item: | High Quality Plc Splitters |
| Highlight: | fiber optic cable splitter,active optical splitter |
||
Quick Detail:
Model Number: 1*16 SC/APC
Length: 1m ,1.5m, 2m or customized length
Ferrule Polish:APC,UPC,PC
1. Features
Various coupling ratio
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration availableSingle mode and multi mode available
2. Applications
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting
3. specifications
| Parameter | Configuration | |||
| N x 4(N=1,2,16) | N x 8 (N=1,2,8) | N x 16 (N=1,2,16) | N x 32 (N=1,2,32) | |
| Operate Wavelength(nm) | 1310/1550, or customized | |||
| Bandwidth(nm) | ±20 | |||
| Max.Excess Loss(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
| Typ.Insertion Loss(dB) | 6.2 | 9.3 | 12.4 | 15.5 |
| Max.Insertion Loss(dB) | 6.8 | 10.2 | 13.6 | 17 |
| Uniformity(dB) | 1.2 | 1.8 | 2.4 | 3 |
| PDL(dB) | 0.08 | 0.12 | 0.16 | 0.2 |
| Thermal Stability(dB) | 0.2 | 0.3 | 0.4 | 0.5 |
| Directivity(dB) | >≥60 | |||
| Operate Temperature(°C) | -40~ +70 | |||
| Lead Length(m) | 1 or customized | |||
| Lead Type(mm) |
φ3.0, φ2.0, φ0.9 |
|||
