Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Optic PLC Splitter | Application: | FTTH FTTB FTTX PON CATV |
|---|---|---|---|
| Fiber Type: | G657A | Operating Temperature: | -40~+85℃ |
| Wavelength: | 1260-1650nm | Item: | High Quality Plc Splitters |
| Highlight: | active optical splitter,fiber optic coupler splitter |
||
Brand Name: J&K

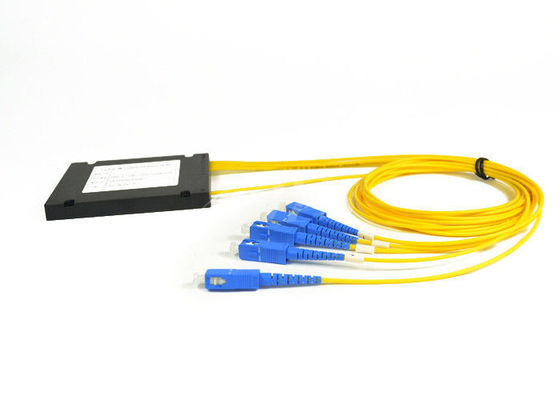

Model Number: 1*4 PLC
Mode: Singlemode
Insertion Loss≤0.5 dB
Max. Optical Power(mw):300
Return Loss(dB):UPC:50 APC:60
Operating Temperature(°C):-40~85
Connector Options:FC/SC/LC/ST/MU/E2000
Key Features
Compact package –Convenient for Small Application & High Density Areas
Telcordia GR-1209 & GR-1221-CORE Compliant
Jacketing Material Rated to -40 to +85 °C Operating Temperature
Bend Insensitive G657A fiber
Low Insertion Loss and PDL
High Polarization Extinction Ratio & Excellent Uniformity
Offer Unique Designs and Configurations & Support Industry Standard Applications
Applications
FTTx Deployments(GPON/BPON/EPON)
CCTV/CATV Links
Access/Metro Networks
Long Haul Telecommunications
1×N PLC Splitter Specifications
| Ports | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
| Operating Wavelength (nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Max(P/S) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.8 | 20.5/21.0 |
| Loss Uniformity (dB) | Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| PDL (dB) | Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 |
| Return Loss (dB) | Min | UPC:50 APC:55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Standard Input Fiber | Bend Insensitive SM Single Fiber(ITU G.657A) | ||||||
| Standard Output Fiber | Bend Insensitive SM Ribbon Fiber(ITU G.657A) | ||||||
| Standard Output Color | Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B) | ||||||
| Max. Optical Power(mw) | 300 | ||||||
| Humidity Range(rh) | 5%~85% | ||||||
| Operating Temperature(℃) | -40~+85 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Connector Options | FC/SC/LC/ST/MU/E2000 | ||||||
| Packaging Options | Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount | ||||||
|
*Telcordia GR-1221-CORE&G-1209-CORE Compliant. |
|||||||
